Please send RFQ , we will respond immediately.

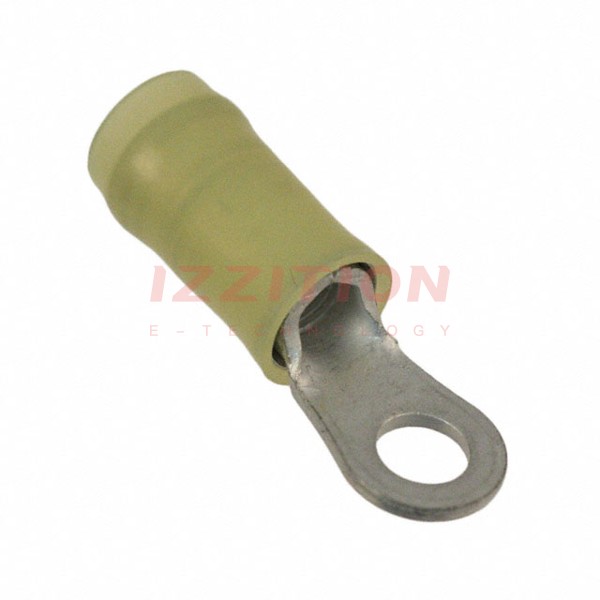

| Part Number | 8-324915-1 | 8-324955-1 | 8-323915-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | 8 Stud | 6 Stud |
| Thickness | 0.040" (1.02mm) | 0.031" (0.79mm) | 0.018" (0.46mm) |
| Width - Outer Edges | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.203" (5.16mm) |
| Length - Overall | 1.052" (26.72mm) | 0.590" (14.99mm) | 0.646" (16.41mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 14-16 AWG | 22-26 AWG |
| Insulation | Insulated | Non-Insulated | Insulated |
| Features | Serrated Termination | Brazed Seam, Serrated Termination | Serrated Termination |
| Color | Yellow | - | Yellow |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
