Please send RFQ , we will respond immediately.

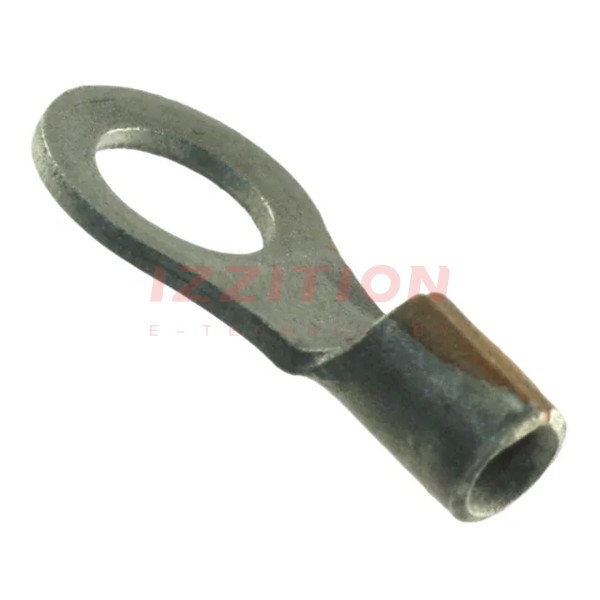

| Part Number | 8-321890-1 | 8-321891-1 | 8-31890-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | 10 Stud | 8 Stud |
| Thickness | 0.030" (0.76mm) | 0.030" (0.76mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.281" (7.14mm) | 0.281" (7.14mm) | 0.312" (7.92mm) |
| Length - Overall | 0.574" (14.58mm) | 0.574" (14.58mm) | 0.844" (21.44mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Non-Insulated | Non-Insulated | Insulated |
| Features | Brazed Seam, High Temperature, Serrated Termination | Brazed Seam, High Temperature, Serrated Termination | Serrated Termination |
| Color | Orange | Orange | Red |
| Contact Material | Nickel | Nickel | Copper |
| Contact Finish | - | - | Tin |
