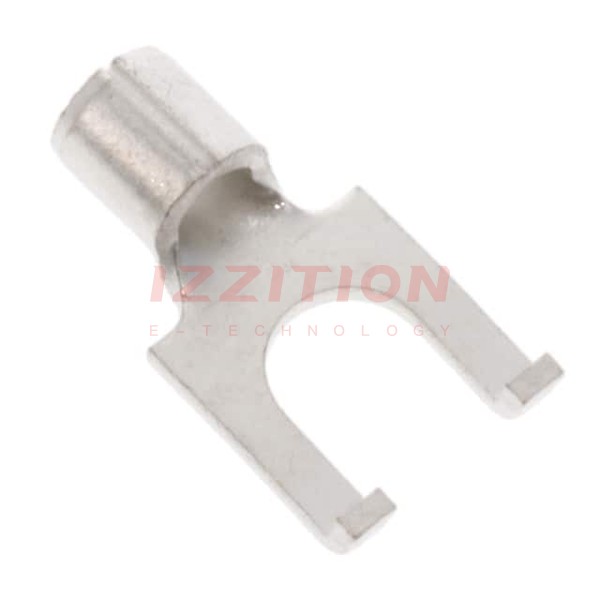

| Part Number | 8-320856-1 | 8-320857-1 | 8-32056-1 | 8-320855-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Flanged | Flanged | Standard | Flanged |
| Stud/Tab Size | 8 Stud | 10 Stud | 8 Stud | 6 Stud |
| Width - Outer Edges | 0.294" (7.47mm) | 0.294" (7.47mm) | 0.375" (9.53mm) | 0.294" (7.47mm) |
| Length - Overall | 0.545" (13.84mm) | 0.545" (13.84mm) | 0.908" (23.06mm) | 0.545" (13.84mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 14-16 AWG | 14-16 AWG | 14-16 AWG |
| Insulation | Non-Insulated | Non-Insulated | Insulated | Non-Insulated |
| Features | Brazed Seam, Serrated Termination | Brazed Seam, Serrated Termination | Serrated Termination | Brazed Seam, Serrated Termination |
| Color | - | - | Blue | - |
| Contact Finish | Tin | Tin | Tin | Tin |
| Contact Material | Copper | Copper | Copper | Copper |
