Please send RFQ , we will respond immediately.

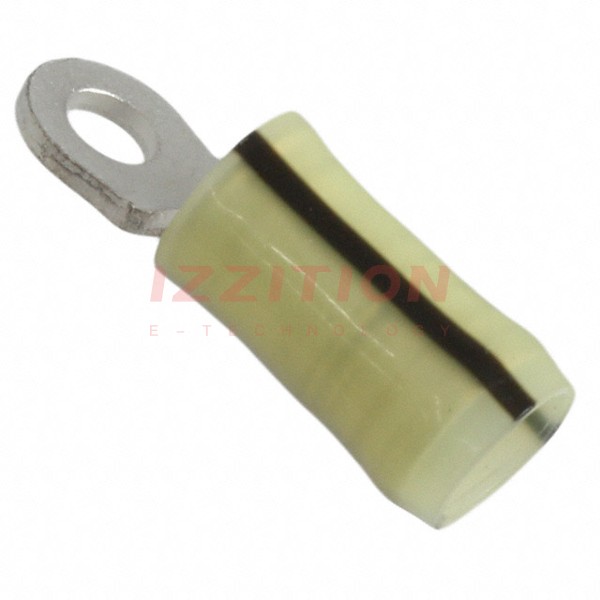

| Part Number | 8-320631-2 | 8-320634-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Circular | Circular |
| Stud/Tab Size | 6 Stud | 6 Stud |
| Thickness | 0.048" (1.22mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.281" (7.14mm) | 0.281" (7.14mm) |
| Length - Overall | 0.553" (14.05mm) | 0.953" (24.21mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp |
| Wire Gauge | 14-16 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated |
| Features | Heavy Duty, Serrated Termination | Serrated Termination |
| Color | Yellow, Black Stripe | Yellow |
| Contact Material | Copper | Copper |
| Contact Finish | Tin | Tin |
