Please send RFQ , we will respond immediately.

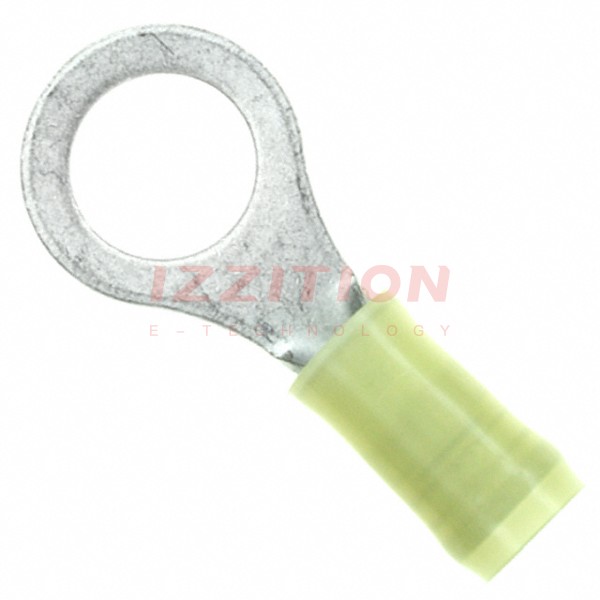

| Part Number | 8-320577-2 | 8-320567-2 | 8-320576-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 3/8 Stud | 6 Stud | 5/16 Stud |
| Thickness | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.040" (1.02mm) |
| Width - Outer Edges | 0.593" (15.06mm) | 0.375" (9.53mm) | 0.531" (13.49mm) |
| Length - Overall | 1.414" (35.92mm) | 1.083" (27.51mm) | 1.322" (33.58mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 10-12 AWG | 10-12 AWG | 10-12 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Yellow | Yellow | Yellow |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin |
