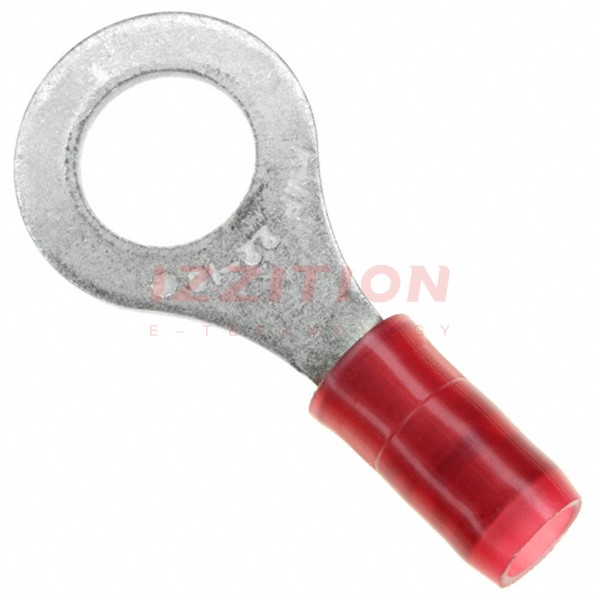

| Part Number | 8-320571-1 | 8-320574-1 | 8-320573-1 | 8-320575-1 | 8-320551-1 | 8-320561-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 1/4 Stud | 10 Stud | 3/8 Stud | 5/16 Stud | 8 Stud | 6 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.469" (11.91mm) | 0.343" (8.71mm) | 0.531" (13.49mm) | 0.469" (11.91mm) | 0.312" (7.92mm) | 0.250" (6.35mm) |
| Length - Overall | 1.078" (27.38mm) | 0.859" (21.82mm) | 1.218" (30.94mm) | 1.078" (27.38mm) | 0.906" (23.01mm) | 0.703" (17.86mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 14-16 AWG | 16-22 AWG | 14-16 AWG | 20 AWG | 14-16 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | - | Serrated Termination | Serrated Termination | Serrated Termination | Insulation Restriction | Serrated Termination |
| Color | Red | Blue | Red | Blue | Red, Red Stripe | Blue |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
