Please send RFQ , we will respond immediately.

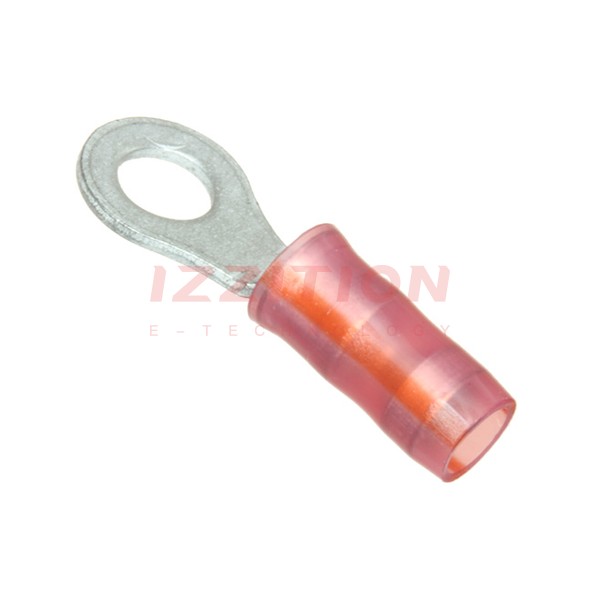

| Part Number | 8-320551-1 | 8-320561-1 | 8-320571-1 | 8-320553-1 | 8-320554-1 | 8-320552-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | 6 Stud | 1/4 Stud | 4 Stud | 8 Stud | 10 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.312" (7.92mm) | 0.250" (6.35mm) | 0.469" (11.91mm) | 0.218" (5.54mm) | 0.281" (7.14mm) | 0.281" (7.14mm) |
| Length - Overall | 0.906" (23.01mm) | 0.703" (17.86mm) | 1.078" (27.38mm) | 0.672" (17.07mm) | 0.797" (20.24mm) | 0.797" (20.24mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 20 AWG | 14-16 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Insulated | Insulated |
| Features | Insulation Restriction | Serrated Termination | - | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Red, Red Stripe | Blue | Red | Red | Red | Red |
| Contact Material | Copper | Copper | Copper | Copper | Copper | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
