Please send RFQ , we will respond immediately.

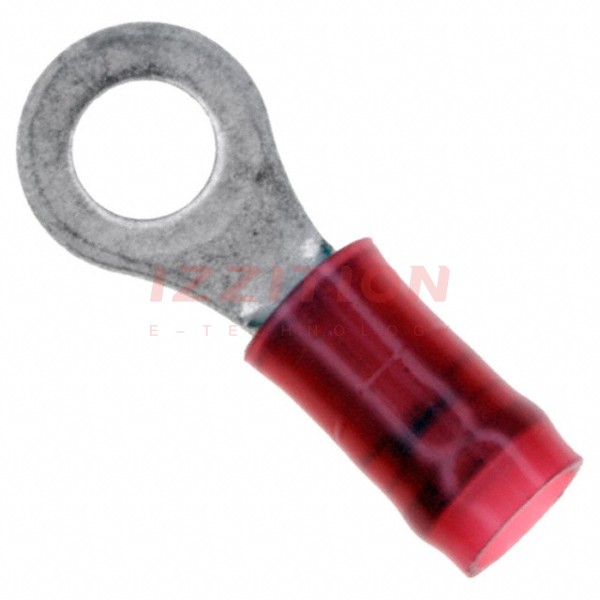

| Part Number | 8-31890-1 | 8-31894-1 | 8-31895-1 | 8-31897-1 | 8-321890-1 | 8-31880-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular | Circular | Circular | Circular |
| Stud/Tab Size | 8 Stud | 1/4 Stud | 5/16 Stud | 3/8 Stud | 8 Stud | 4 Stud |
| Thickness | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.031" (0.79mm) | 0.030" (0.76mm) | 0.031" (0.79mm) |
| Width - Outer Edges | 0.312" (7.92mm) | 0.469" (11.91mm) | 0.469" (11.91mm) | 0.531" (13.49mm) | 0.281" (7.14mm) | 0.218" (5.54mm) |
| Length - Overall | 0.844" (21.44mm) | 1.078" (27.38mm) | 1.078" (27.38mm) | 1.218" (30.94mm) | 0.574" (14.58mm) | 0.672" (17.07mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG | 16-22 AWG |
| Insulation | Insulated | Insulated | Insulated | Insulated | Non-Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination | Serrated Termination | Brazed Seam, High Temperature, Serrated Termination | Serrated Termination |
| Color | Red | Red | Red | Red | Orange | Red |
| Contact Material | Copper | Copper | Copper | Copper | Nickel | Copper |
| Contact Finish | Tin | Tin | Tin | Tin | - | Tin |
