Please send RFQ , we will respond immediately.

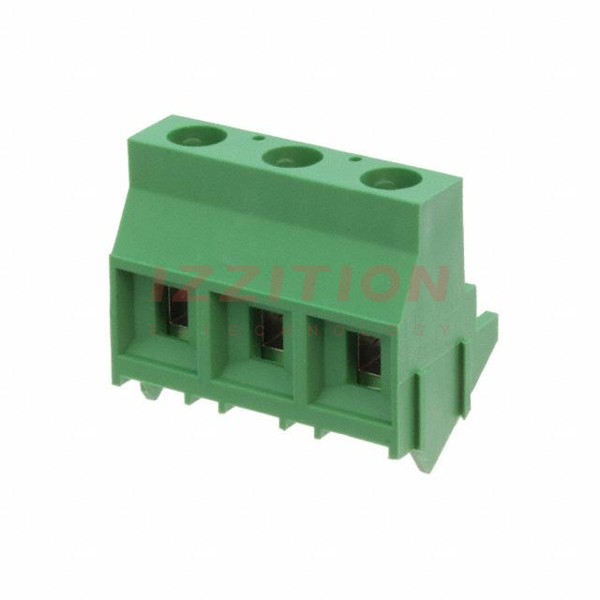

| Part Number | 796741-3 | 796748-3 | 796740-3 | 796741-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 |
| Positions Per Level | 3 | 3 | 3 | 2 |
| Pitch | 0.375" (9.53mm) | 0.197" (5.00mm) | 0.250" (6.35mm) | 0.375" (9.53mm) |
| Mating Orientation | 35° (145°) Angle with Board | Vertical with Board | Horizontal with Board | 35° (145°) Angle with Board |
| Current | 30 A | 17.5 A | 30 A | 30 A |
| Voltage | 600 V | 300 V | 300 V | 600 V |
| Wire Gauge | 10-24 AWG | 12-30 AWG | 10-24 AWG | 10-24 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Features | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) |
| Color | Green | Green | Green | Green |
