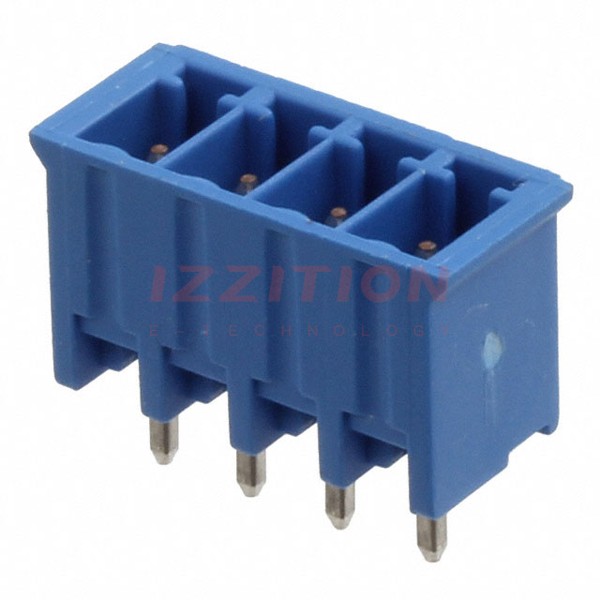

| Part Number | 796694-4 | 796696-4 | 796634-4 | 796644-4 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Type | Header, Male Pins, Shrouded (4 Side) | Plug, Female Sockets | Plug, Female Sockets | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 4 | 4 | 4 | 4 |
| Positions Per Level | 4 | 4 | 4 | 4 |
| Number of Levels | 1 | 1 | 1 | 1 |
| Pitch | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.200" (5.08mm) | 0.197" (5.00mm) |
| Header Orientation | Vertical | - | - | 90°, Right Angle |
| Plug Wire Entry | - | 180° | 180° | - |
| Termination Style | Solder | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Solder |
| Mounting Type | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole |
| Current - IEC | - | - | - | - |
| Voltage - IEC | - | - | - | - |
| Current - UL | 11 A | 15 A | 15 A | 15 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | - | 12-30 AWG | 12-30 AWG | - |
| Wire Gauge or Range - mm² | - | 0.05-3mm² | 0.05-3mm² | - |
| Color | Blue | Blue | Green | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | - | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side) | - |
