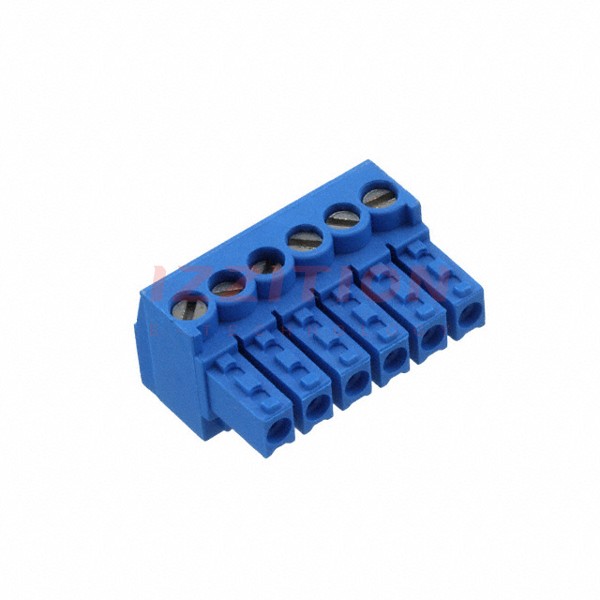

| Part Number | 796693-6 | 796693-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 6 | 3 |
| Positions Per Level | 6 | 3 |
| Number of Levels | 1 | 1 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Header Orientation | - | - |
| Plug Wire Entry | 180° | 180° |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - |
| Voltage - IEC | - | - |
| Current - UL | 11 A | 11 A |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG | 14-30 AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.3-2mm² | 0.3-2mm² |
| Color | Blue | Blue |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin |
| Features | Side Stacking | Side Stacking |
