Please send RFQ , we will respond immediately.

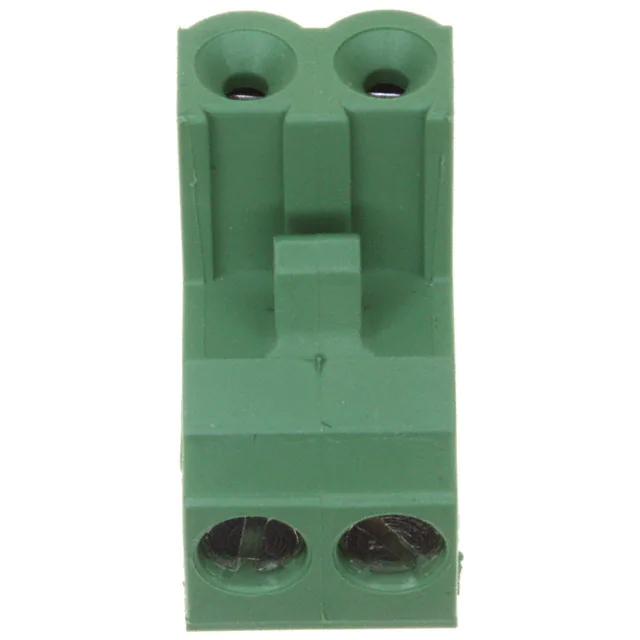

| Part Number | 796640-2 | 796640-3 | 796640-9 | 796644-2 | 796640-4 | 796640-5 | 796640-6 | 796640-8 | 796642-2 | 796641-2 | 796645-2 | 796643-2 | 796640-7 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Header, Male Pins, Shrouded (4 Side) | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Header, Male Pins, Shrouded (4 Side) | Plug, Female Sockets | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) | Plug, Female Sockets |
| Number of Positions | 2 | 3 | 9 | 2 | 4 | 5 | 6 | 8 | 2 | 2 | 2 | 2 | 7 |
| Positions Per Level | 2 | 3 | 9 | 2 | 4 | 5 | 6 | 8 | 2 | 2 | 2 | 2 | 7 |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Header Orientation | - | - | - | 90°, Right Angle | - | - | - | - | Vertical | - | 90°, Right Angle | Vertical | - |
| Plug Wire Entry | 180° | 180° | 180° | - | 180° | 180° | 180° | 180° | - | 180° | - | - | 180° |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Solder | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp | Solder | Screw - Rising Cage Clamp | Solder | Solder | Screw - Rising Cage Clamp |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Through Hole | Through Hole | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Voltage - IEC | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Current - UL | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A | 15 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | - | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | - | 12-30 AWG | - | - | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.05-3mm² | 0.05-3mm² | 0.05-3mm² | - | 0.05-3mm² | 0.05-3mm² | 0.05-3mm² | 0.05-3mm² | - | 0.05-3mm² | - | - | 0.05-3mm² |
| Color | Green | Green | Green | Green | Green | Green | Green | Green | Green | Black | Black | Black | Green |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Features | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side), Side Stacking | - | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side), Side Stacking | Retention Latches (Non-Wire Side), Side Stacking | - | Retention Latches (Non-Wire Side), Side Stacking | - | - | Retention Latches (Non-Wire Side), Side Stacking |
