796272-1
  • Share:

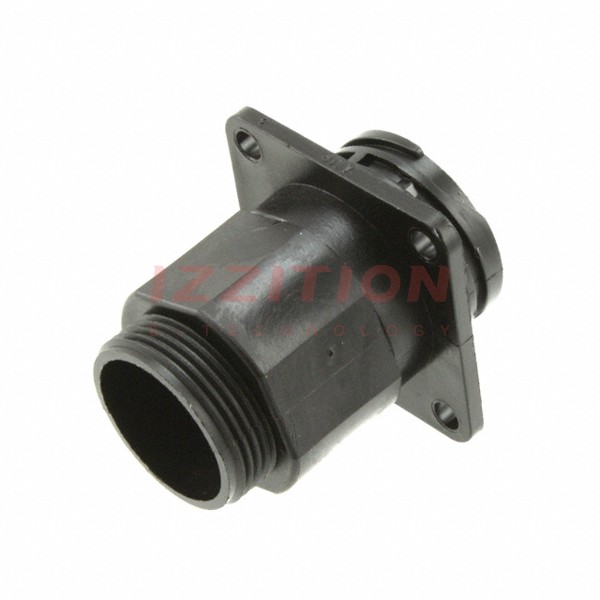

TE Connectivity AMP Connectors 796272-1

Manufacturer No:
796272-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
796272-1 Datasheet
ECAD Model:
-
Description:
CONN RCPT HSG FMALE 14POS PNL MT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle Housing
Type:For Female Sockets
Number of Positions:14
Shell Size - Insert:17-14
Shell Size, MIL:-
Contact Type:Crimp
Contact Size:16
Mounting Type:Panel Mount
Mounting Feature:Flange
Fastening Type:Threaded
Orientation:Keyed
Primary Material:-
Shell Material:Polyamide (PA), Nylon
Shell Finish:-
Housing Color:Black
Ingress Protection:IP67 - Dust Tight, Waterproof
Material Flammability Rating:UL94 V-0
Features:Backshell
Shielding:Unshielded
0 Remaining View Similar

In Stock

$28.12
13

Please send RFQ , we will respond immediately.

Similar Products

Part Number 796272-1 796274-1   796273-1   796275-1   796276-1   796271-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active
Connector Type Receptacle Housing Plug Housing Receptacle Housing Receptacle Housing Receptacle Housing Plug Housing
Type For Female Sockets For Female Sockets For Female Sockets For Male Pins For Male Pins For Male Pins
Number of Positions 14 16 14 16 16 14
Shell Size - Insert 17-14 17-16 17-14 17-16 17-16 17-14
Shell Size, MIL - - - - - -
Contact Type Crimp Crimp Crimp Crimp Crimp Crimp
Contact Size 16 16 16 16 16 16
Mounting Type Panel Mount Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount Free Hanging (In-Line) Free Hanging (In-Line)
Mounting Feature Flange - - Flange - -
Fastening Type Threaded Threaded Threaded Threaded Threaded Threaded
Orientation Keyed Keyed Keyed Keyed Keyed Keyed
Primary Material - - - - - -
Shell Material Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon Polyamide (PA), Nylon
Shell Finish - - - - - -
Housing Color Black Black Black Black Black Black
Ingress Protection IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Features Backshell Backshell, Coupling Nut Backshell Backshell Backshell Backshell, Coupling Nut
Shielding Unshielded Unshielded Unshielded Unshielded Unshielded Unshielded
