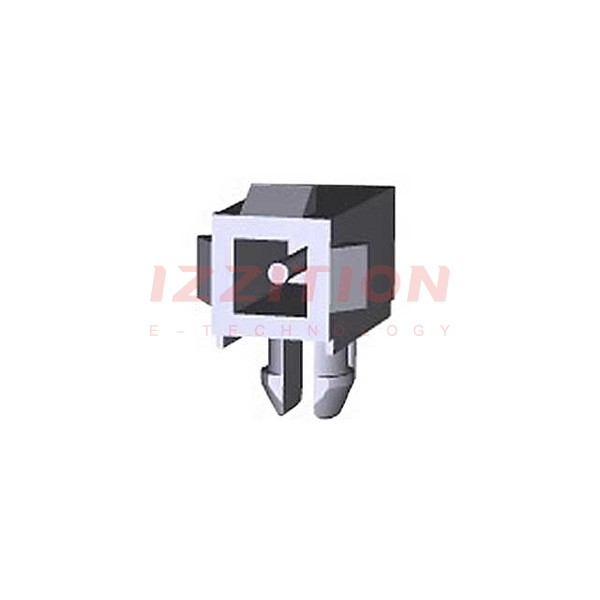

| Part Number | 794378-1 | 794358-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | - | 0.165" (4.20mm) |
| Number of Positions | 1 | 20 |
| Number of Rows | 1 | 2 |
| Row Spacing - Mating | - | 0.165" (4.20mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.145" (3.68mm) | 0.138" (3.50mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.225" (5.72mm) | 0.504" (12.80mm) |
| Contact Shape | Circular | Square |
| Contact Finish - Mating | Gold | Tin-Lead |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin | Tin-Lead |
| Contact Material | Brass | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Board Lock | - |
| Operating Temperature | - | -55°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 |
| Insulation Color | Natural | Natural |
| Current Rating (Amps) | - | - |
| Voltage Rating | - | 600VAC |
