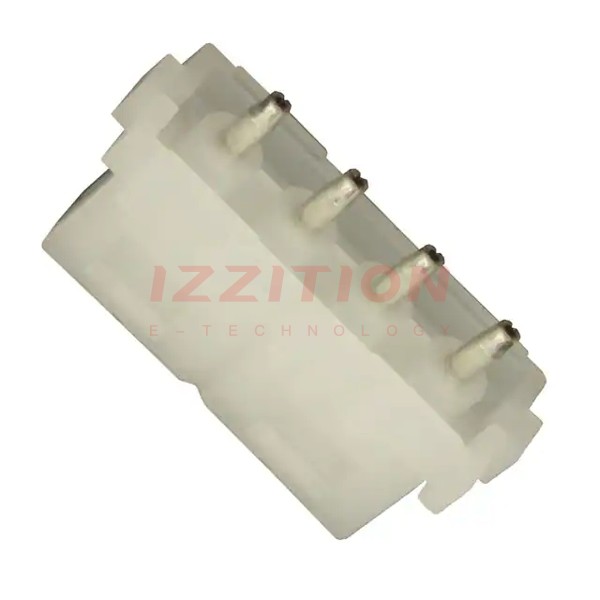

| Part Number | 794285-1 | 794287-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Female Socket | Female Socket |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Number of Positions | 4 | 4 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Detent Lock | Detent Lock |
| Contact Finish - Mating | Tin | Tin |
| Contact Finish Thickness - Mating | - | - |
| Insulation Color | Natural | Black |
| Insulation Height | 0.455" (11.56mm) | 0.455" (11.56mm) |
| Contact Length - Post | 0.170" (4.32mm) | 0.170" (4.32mm) |
| Operating Temperature | - | - |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | - | - |
| Current Rating (Amps) | - | - |
| Voltage Rating | - | - |
