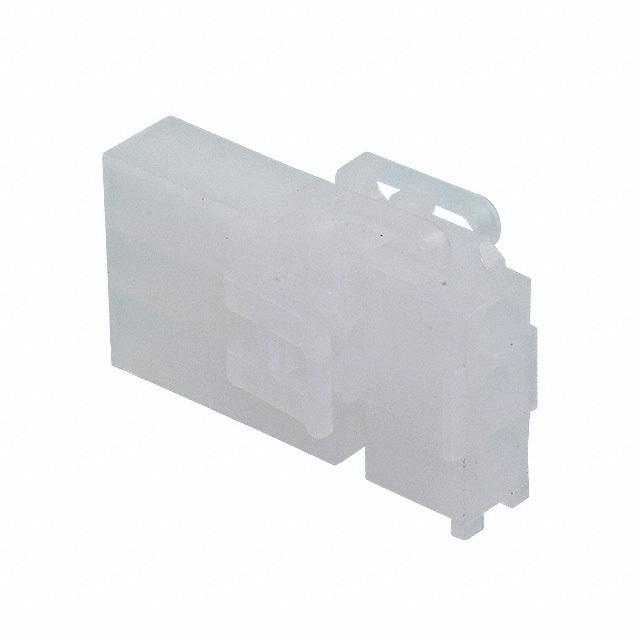

| Part Number | 794240-1 | 794940-1 | 794241-1 | 794249-1 | 794243-1 | 794242-1 | 794246-1 | 794245-1 | 794244-1 | 794260-1 | 794200-1 | 794210-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Plug | Plug | Plug | Receptacle | Receptacle | Plug | Receptacle | Receptacle | Plug | Plug |
| Contact Type | Female Socket | Male or Female | Male or Female | Female Socket | Male or Female | Male Pin | Male or Female | Male or Female | Male Pin | Male or Female | Male or Female | Male or Female |
| Number of Positions | 3 | 6 | 4 | 10 | 6 | 4 | 8 | 8 | 6 | 16 | 12 | 20 |
| Pitch | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) |
| Number of Rows | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 2 |
| Row Spacing | - | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) |
| Mounting Type | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Locking Ramp | Latch Lock | Latch Lock | Latch Lock | Locking Ramp | Locking Ramp | Latch Lock | Locking Ramp | Locking Ramp | Latch Lock | Latch Lock |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
