Please send RFQ , we will respond immediately.

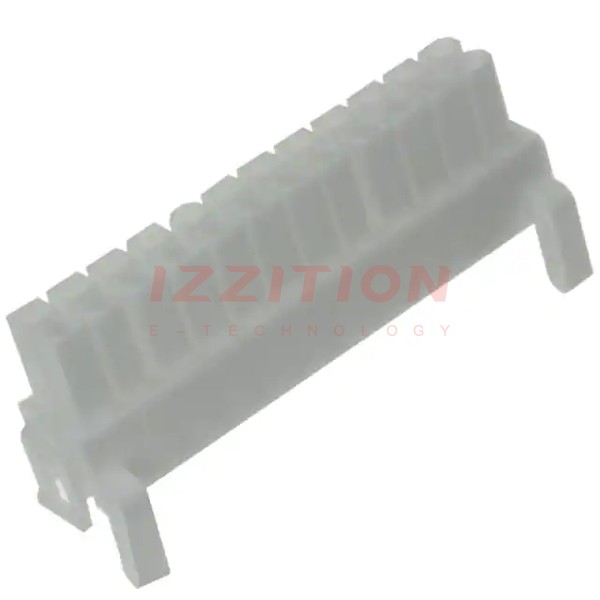

| Part Number | 794214-1 | 794714-1 | 794215-1 | 794814-1 | 794244-1 | 794204-1 | 794210-1 | 794211-1 | 794212-1 | 794213-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug | Receptacle | Receptacle | Plug | Receptacle | Plug | Plug | Receptacle | Plug | Receptacle |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male Pin | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 24 | 6 | 24 | 2 | 6 | 15 | 20 | 20 | 22 | 22 |
| Pitch | 0.163" (4.14mm) | - | 0.163" (4.14mm) | - | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) |
| Number of Rows | 2 | 3 | 2 | 1 | 2 | 3 | 2 | 2 | 2 | 2 |
| Row Spacing | 0.163" (4.14mm) | 0.250" (6.35mm) | 0.163" (4.14mm) | - | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) |
| Mounting Type | Free Hanging (In-Line) | Panel Mount, Twist and Lock | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Locking Ramp | Locking Ramp | Latch Lock | Locking Ramp | Latch Lock | Latch Lock | Locking Ramp | Latch Lock | Locking Ramp |
| Color | Natural | Natural | Natural | Black | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - |
