Please send RFQ , we will respond immediately.

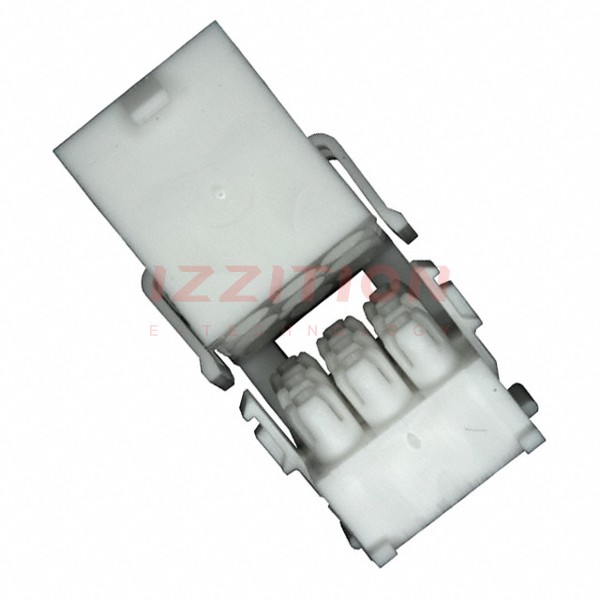

| Part Number | 794195-1 | 794199-1 | 794196-1 | 794197-1 | 794895-1 | 794198-1 | 794185-1 | 794190-1 | 794191-1 | 794192-1 | 794193-1 | 794194-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Plug | Receptacle | Plug | Plug | Receptacle | Plug | Receptacle | Plug | Receptacle | Plug |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 9 | 12 | 10 | 10 | 6 | 12 | 2 | 6 | 6 | 8 | 8 | 9 |
| Pitch | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | - | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) |
| Number of Rows | 3 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 |
| Row Spacing | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) | 0.163" (4.14mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Locking Ramp | Locking Ramp | Latch Lock | Locking Ramp | Latch Lock | Latch Lock | Locking Ramp | Latch Lock | Locking Ramp | Latch Lock | Locking Ramp | Latch Lock |
| Color | Natural | Natural | Natural | Natural | White | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
