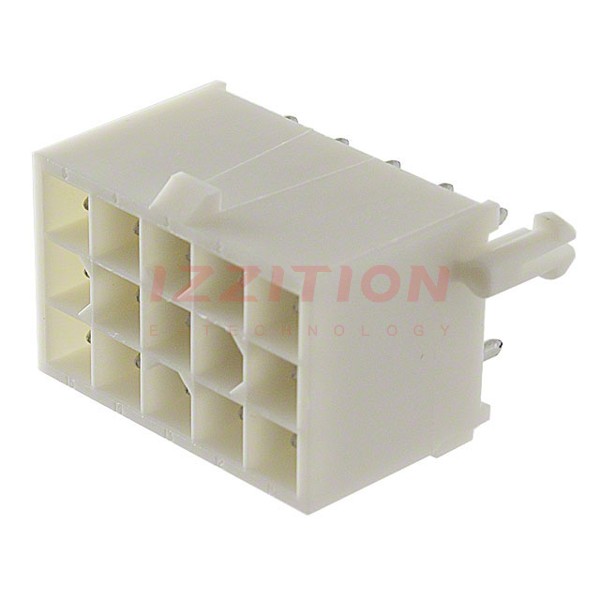

| Part Number | 770859-1 | 770829-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.163" (4.14mm) | 0.200" (5.08mm) |
| Number of Positions | 15 | 4 |
| Number of Rows | 3 | 1 |
| Row Spacing - Mating | 0.163" (4.14mm) | - |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Surface Mount, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Locking Ramp | Detent Lock |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.175" (4.45mm) | - |
| Overall Contact Length | - | - |
| Insulation Height | 0.531" (13.50mm) | 0.330" (8.38mm) |
| Contact Shape | Circular | Circular |
| Contact Finish - Mating | Tin-Lead | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | - |
| Contact Finish - Post | Tin-Lead | Tin |
| Contact Material | Brass | Copper Alloy |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Board Lock | Board Guide, Board Lock |
| Operating Temperature | -20°C ~ 85°C | -55°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-2 |
| Insulation Color | White | Black |
| Current Rating (Amps) | Varies by Wire Gauge | 15A |
| Voltage Rating | 600VAC | 250VAC |
