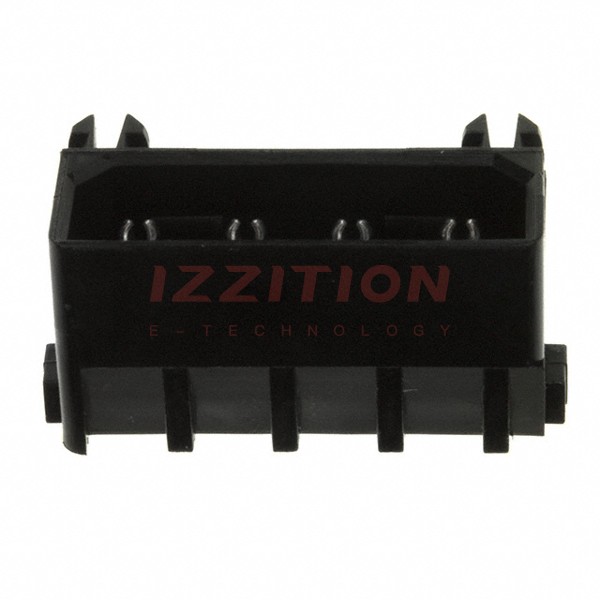

| Part Number | 770829-1 | 770859-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.200" (5.08mm) | 0.163" (4.14mm) |
| Number of Positions | 4 | 15 |
| Number of Rows | 1 | 3 |
| Row Spacing - Mating | - | 0.163" (4.14mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Detent Lock | Locking Ramp |
| Contact Length - Mating | - | - |
| Contact Length - Post | - | 0.175" (4.45mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.330" (8.38mm) | 0.531" (13.50mm) |
| Contact Shape | Circular | Circular |
| Contact Finish - Mating | Tin | Tin-Lead |
| Contact Finish Thickness - Mating | - | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Tin-Lead |
| Contact Material | Copper Alloy | Brass |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | Board Guide, Board Lock | Board Lock |
| Operating Temperature | -55°C ~ 105°C | -20°C ~ 85°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-2 | UL94 V-0 |
| Insulation Color | Black | White |
| Current Rating (Amps) | 15A | Varies by Wire Gauge |
| Voltage Rating | 250VAC | 600VAC |
