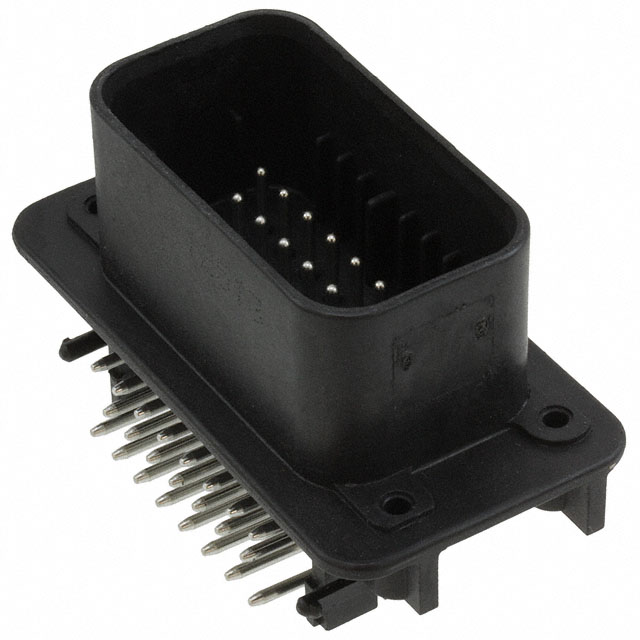

| Part Number | 770669-1 | 770969-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.157" (4.00mm) | 0.163" (4.14mm) |
| Number of Positions | 23 | 6 |
| Number of Rows | 3 | 2 |
| Row Spacing - Mating | 0.157" (4.00mm) | 0.163" (4.14mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Locking Ramp | Locking Ramp |
| Contact Length - Mating | - | - |
| Contact Length - Post | - | 0.145" (3.68mm) |
| Overall Contact Length | - | - |
| Insulation Height | - | 0.386" (9.80mm) |
| Contact Shape | Circular | Circular |
| Contact Finish - Mating | Tin | Tin-Lead |
| Contact Finish Thickness - Mating | - | 150.0µin (3.81µm) |
| Contact Finish - Post | - | Tin-Lead |
| Contact Material | Brass | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polyamide (PA), Nylon |
| Features | Board Guide, Sealable | Board Lock |
| Operating Temperature | -40°C ~ 105°C | -20°C ~ 85°C |
| Ingress Protection | - | - |
| Material Flammability Rating | - | UL94 V-0 |
| Insulation Color | Black | White |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Voltage Rating | 250VAC | 600VAC |
