Please send RFQ , we will respond immediately.

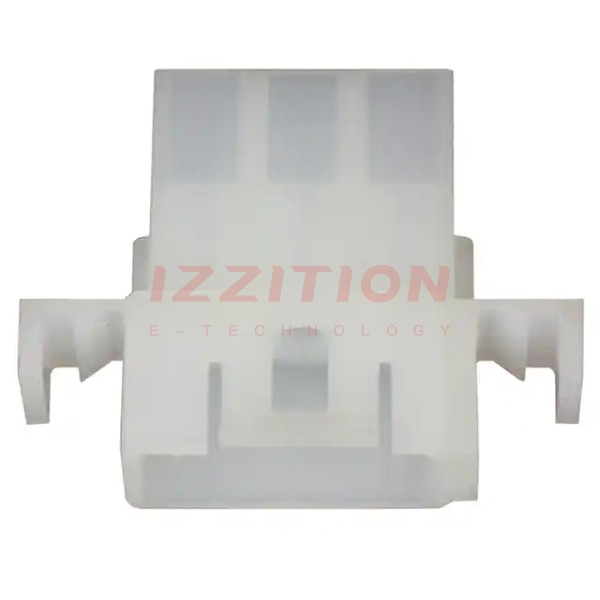

| Part Number | 770338-1 | 770538-1 | 770339-1 | 770038-1 | 770330-1 | 770331-1 | 770332-1 | 770333-1 | 770334-1 | 770335-1 | 770336-1 | 770337-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug | Plug | Receptacle | Plug, Rear Section | Plug | Plug | Plug | Receptacle | Plug | Receptacle | Plug | Receptacle |
| Contact Type | Male or Female | Male Pin | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 3 | 4 | 3 | 6 | 4 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
| Pitch | - | 0.145" (3.68mm) | - | - | - | 0.145" (3.68mm) | 0.145" (3.68mm) | 0.145" (3.68mm) | 0.145" (3.68mm) | 0.145" (3.68mm) | - | - |
| Number of Rows | 1 | 2 | 1 | 3 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | 0.145" (3.68mm) | - | 0.250" (6.35mm) | - | - | - | - | - | - | - | - |
| Mounting Type | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | - | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Detent Lock | Detent Lock | Locking Ramp | Latch Lock | Detent Lock | Detent Lock | Detent Lock | Locking Ramp | Detent Lock | Locking Ramp | Detent Lock | Locking Ramp |
| Color | Natural | Natural | Natural | White | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - |
