Please send RFQ , we will respond immediately.

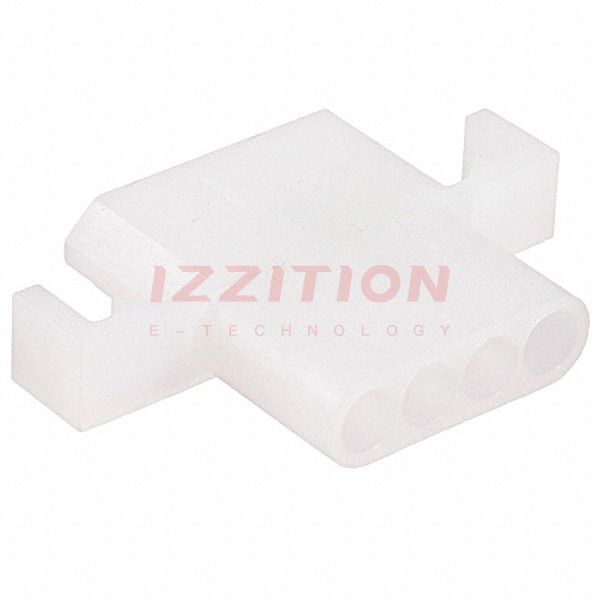

| Part Number | 770335-1 | 770339-1 | 770337-1 | 770355-1 | 770336-1 | 770365-1 | 770338-1 | 770035-1 | 770330-1 | 770331-1 | 770332-1 | 770333-1 | 770334-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Plug | Plug | Plug | Plug | Plug, Front Section | Plug | Plug | Plug | Receptacle | Plug |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 4 | 3 | 4 | 6 | 4 | 2 | 3 | 4 | 4 | 3 | 3 | 3 | 4 |
| Pitch | 0.145" (3.68mm) | - | - | 0.145" (3.68mm) | - | 0.248" (6.30mm) | - | - | - | 0.145" (3.68mm) | 0.145" (3.68mm) | 0.145" (3.68mm) | 0.145" (3.68mm) |
| Number of Rows | 1 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | 0.145" (3.68mm) | - | - | - | - | - | - | - | - | - |
| Mounting Type | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Detent Lock | Detent Lock | Detent Lock | Detent Lock | Latch Lock | Detent Lock | Detent Lock | Detent Lock | Locking Ramp | Detent Lock |
| Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural | White | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - |
