770328-1
  • Share:

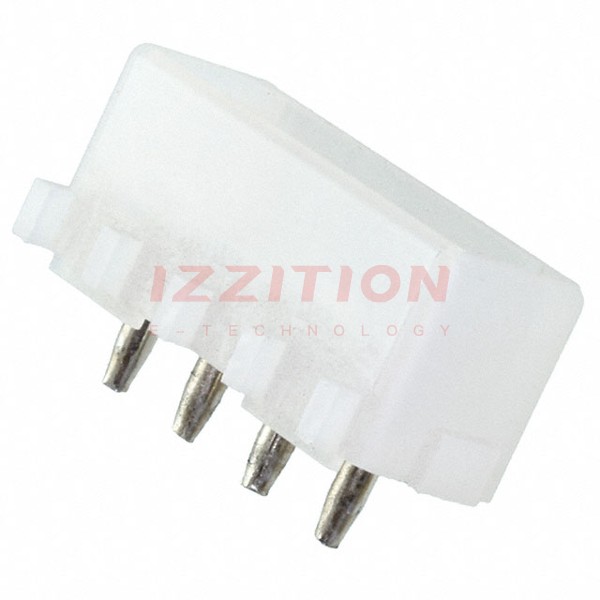

TE Connectivity AMP Connectors 770328-1

Manufacturer No:
770328-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
770328-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 4POS 5.08MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.200" (5.08mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.375" (9.53mm)
Contact Shape:Circular
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:80.0µin (2.03µm)
Contact Finish - Post:Tin-Lead
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Natural
Current Rating (Amps):12A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$1.03
149

Please send RFQ , we will respond immediately.
