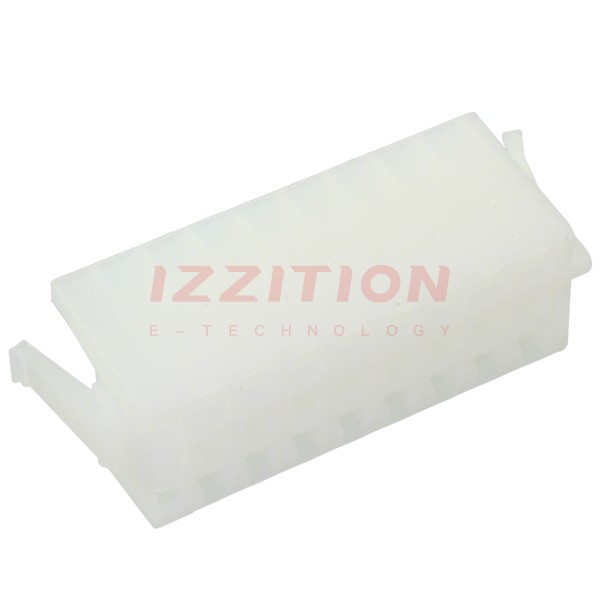

| Part Number | 770198-1 | 770199-1 | 770098-1 | 770108-1 | 770197-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete |
| Connector Type | Header | Plug | Receptacle | Plug | Header |
| Contact Type | Female Socket | Female Socket | Male or Female | Male or Female | Female Socket |
| Number of Positions | 24 | 18 | 12 | 9 | 24 |
| Pitch | 0.220" (5.59mm) | 0.220" (5.59mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.220" (5.59mm) |
| Number of Rows | 3 | 3 | 3 | 3 | 3 |
| Row Spacing | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.200" (5.08mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock | Locking Ramp | Detent Lock | Latch Lock/Eject Hooks |
| Color | Natural | Black | Natural | Natural | Black |
| Features | - | - | - | - | - |
