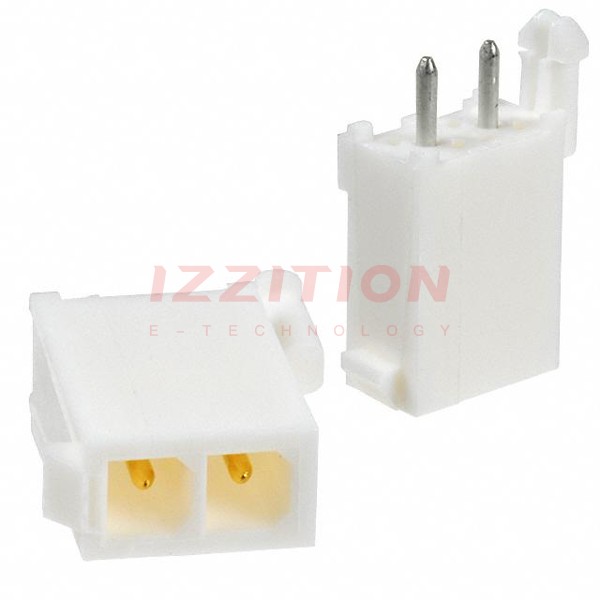

TE Connectivity AMP Connectors 770166-1

Manufacturer No:
770166-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
770166-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 2POS 4.14MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.163" (4.14mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.175" (4.45mm)
Overall Contact Length:-
Insulation Height:0.531" (13.50mm)
Contact Shape:Circular
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:150.0µin (3.81µm)
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Board Lock
Operating Temperature:-20°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:600VAC
