Please send RFQ , we will respond immediately.

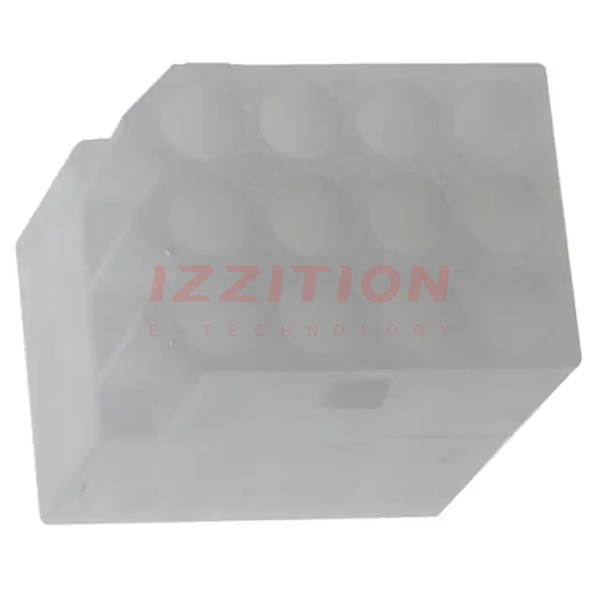

| Part Number | 770098-1 | 770099-1 | 770198-1 | 770018-1 | 770028-1 | 770038-1 | 770048-1 | 770058-1 | 770068-1 | 770078-1 | 770088-1 | 770090-1 | 770091-1 | 770092-1 | 770093-1 | 770094-1 | 770095-1 | 770096-1 | 770097-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Header | Plug | Receptacle | Plug, Rear Section | Receptacle, Rear Section | Receptacle, Rear Section | Plug | Plug | Receptacle | Plug | Receptacle | Receptacle | Receptacle | Receptacle | Plug | Plug | Receptacle |
| Contact Type | Male or Female | Male or Female | Female Socket | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 12 | 12 | 24 | 3 | 9 | 6 | 3 | 15 | 2 | 4 | 6 | 6 | 9 | 9 | 9 | 9 | 9 | 9 | 12 |
| Pitch | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.220" (5.59mm) | - | - | - | - | - | 0.248" (6.30mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) |
| Number of Rows | 3 | 3 | 3 | 1 | 3 | 3 | 1 | 3 | 1 | 1 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Row Spacing | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.200" (5.08mm) | - | 0.250" (6.35mm) | 0.250" (6.35mm) | - | 0.250" (6.35mm) | - | - | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) |
| Mounting Type | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Locking Ramp | Locking Ramp | Latch Lock/Eject Hooks | Latch Lock | Locking Ramp | Latch Lock | Latch Lock | Latch Lock | Detent Lock | Detent Lock | - | Detent Lock | - | Locking Ramp | Locking Ramp | - | Detent Lock | Detent Lock | - |
| Color | Natural | Natural | Natural | White | White | White | White | White | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
