770086-1
  • Share:

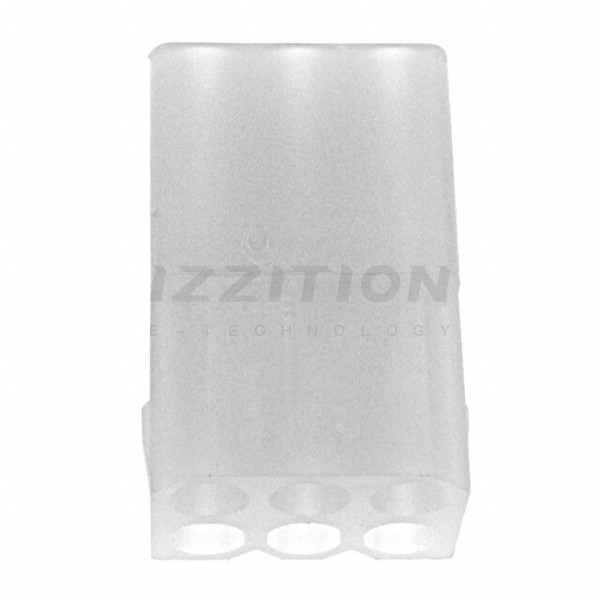

TE Connectivity AMP Connectors 770086-1

Manufacturer No:
770086-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
770086-1 Datasheet
ECAD Model:
-
Description:
CONN RCPT HSG 6POS 5.03MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Male or Female
Number of Positions:6
Pitch:0.198" (5.03mm)
Number of Rows:2
Row Spacing:0.198" (5.03mm)
Mounting Type:Free Hanging (In-Line)
Contact Termination:Crimp
Fastening Type:Locking Ramp
Color:Natural
Features:-
0 Remaining View Similar

In Stock

$0.44
1,093

Please send RFQ , we will respond immediately.

Similar Products

Part Number 770086-1 770088-1   770087-1   770586-1   770089-1   770096-1   770016-1   770026-1   770036-1   770046-1   770056-1   770066-1   770076-1   770083-1   770084-1   770085-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active
Connector Type Receptacle Receptacle Receptacle Plug Plug Plug Plug Receptacle Plug, Rear Section Receptacle, Rear Section Receptacle, Rear Section Receptacle Receptacle Receptacle Plug Receptacle
Contact Type Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female Male or Female
Number of Positions 6 6 6 22 6 9 5 4 4 2 12 2 4 5 5 6
Pitch 0.198" (5.03mm) 0.198" (5.03mm) 0.198" (5.03mm) 0.163" (4.14mm) 0.198" (5.03mm) 0.198" (5.03mm) - - - - - 0.248" (6.30mm) 0.198" (5.03mm) 0.198" (5.03mm) 0.198" (5.03mm) 0.198" (5.03mm)
Number of Rows 2 2 2 2 2 3 1 1 1 1 3 1 1 1 1 3
Row Spacing 0.198" (5.03mm) 0.198" (5.03mm) 0.198" (5.03mm) 0.163" (4.14mm) 0.198" (5.03mm) 0.198" (5.03mm) - - - - 0.250" (6.35mm) - - - - 0.198" (5.03mm)
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount, Snap-In Free Hanging (In-Line) Panel Mount, Snap-In Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount, Snap-In Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount, Snap-In Panel Mount, Snap-In Free Hanging (In-Line) Free Hanging (In-Line) Panel Mount, Snap-In
Contact Termination Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp Crimp
Fastening Type Locking Ramp - Locking Ramp Latch Lock Detent Lock Detent Lock Latch Lock Locking Ramp Latch Lock Latch Lock Latch Lock Detent Lock Locking Ramp Locking Ramp Detent Lock -
Color Natural Natural Natural White Natural Natural White White White White White Natural Natural Natural Natural Natural
Features - - - - - - - - - - - - - - - -
