Please send RFQ , we will respond immediately.

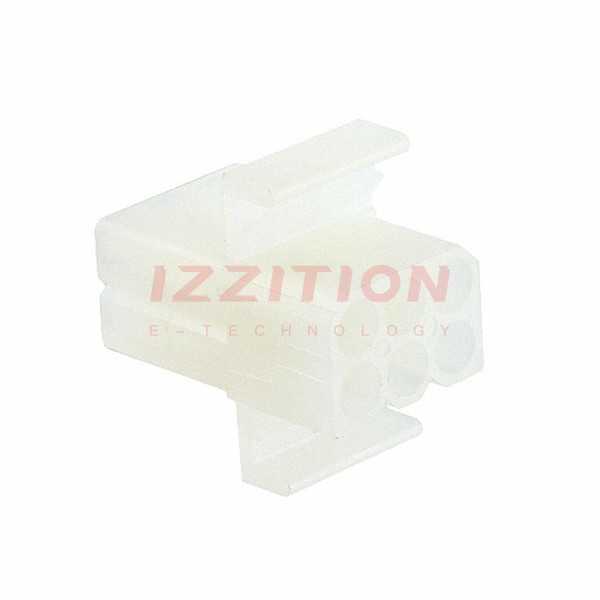

| Part Number | 770085-1 | 770086-1 | 770088-1 | 770087-1 | 770585-1 | 770089-1 | 770095-1 | 770025-1 | 770035-1 | 770045-1 | 770055-1 | 770065-1 | 770075-1 | 770083-1 | 770084-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Plug | Plug | Plug | Receptacle | Plug, Front Section | Receptacle, Front Section | Receptacle, Front Section | Receptacle | Receptacle | Receptacle | Plug |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 6 | 6 | 6 | 6 | 20 | 6 | 9 | 3 | 4 | 2 | 12 | 2 | 4 | 5 | 5 |
| Pitch | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.163" (4.14mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | - | - | - | - | 0.248" (6.30mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) |
| Number of Rows | 3 | 2 | 2 | 2 | 2 | 2 | 3 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | 1 |
| Row Spacing | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.163" (4.14mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | - | - | - | 0.250" (6.35mm) | - | - | - | - |
| Mounting Type | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | - | Locking Ramp | - | Locking Ramp | Latch Lock | Detent Lock | Detent Lock | Locking Ramp | Latch Lock | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Detent Lock |
| Color | Natural | Natural | Natural | Natural | White | Natural | Natural | White | White | White | White | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
