Please send RFQ , we will respond immediately.

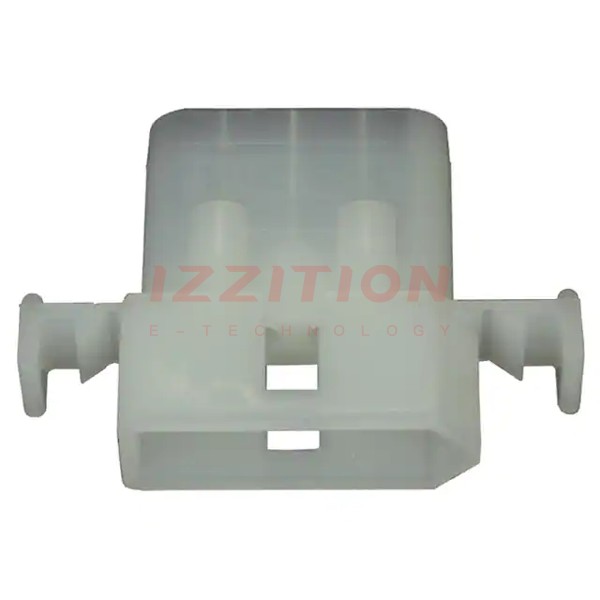

| Part Number | 770077-1 | 770078-1 | 770277-1 | 770087-1 | 770097-1 | 770017-1 | 770027-1 | 770037-1 | 770047-1 | 770057-1 | 770070-1 | 770071-1 | 770073-1 | 770074-1 | 770075-1 | 770076-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug | Plug | Receptacle | Receptacle | Receptacle | Plug | Receptacle | Plug, Front Section | Receptacle, Front Section | Receptacle, Front Section | Receptacle | Receptacle | Plug | Plug | Receptacle | Receptacle |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 4 | 4 | 1 | 6 | 12 | 2 | 6 | 6 | 3 | 15 | 3 | 3 | 3 | 3 | 4 | 4 |
| Pitch | 0.198" (5.03mm) | 0.198" (5.03mm) | - | 0.198" (5.03mm) | 0.198" (5.03mm) | - | - | - | - | - | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | 0.198" (5.03mm) |
| Number of Rows | 1 | 1 | 1 | 2 | 3 | 1 | 3 | 3 | 1 | 3 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | 0.198" (5.03mm) | 0.198" (5.03mm) | - | 0.250" (6.35mm) | 0.250" (6.35mm) | - | 0.250" (6.35mm) | - | - | - | - | - | - |
| Mounting Type | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Detent Lock | Detent Lock | Locking Ramp | Locking Ramp | - | Latch Lock | Locking Ramp | Latch Lock | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Detent Lock | Detent Lock | Locking Ramp | Locking Ramp |
| Color | Natural | Natural | Natural | Natural | Natural | White | White | White | White | White | Natural | Natural | Natural | Natural | Natural | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
