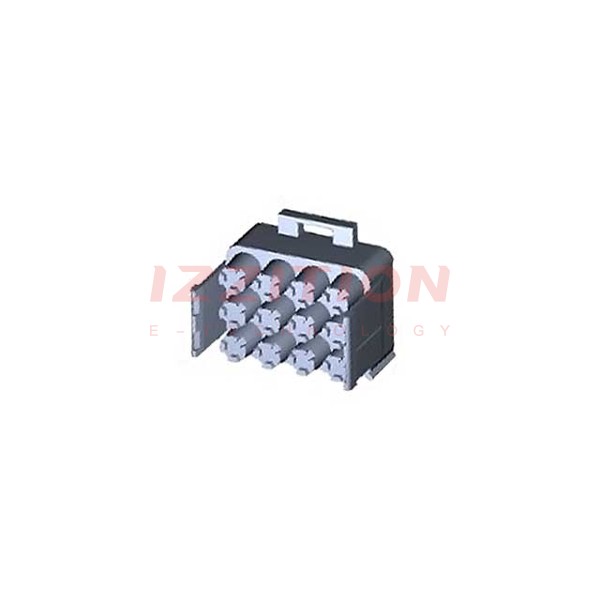

| Part Number | 770056-1 | 770086-1 | 770356-1 | 770076-1 | 770096-1 | 770057-1 | 770066-1 | 770058-1 | 770016-1 | 770026-1 | 770036-1 | 770046-1 | 770050-1 | 770051-1 | 770052-1 | 770053-1 | 770054-1 | 770055-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle, Rear Section | Receptacle | Receptacle | Receptacle | Plug | Receptacle, Front Section | Receptacle | Receptacle, Rear Section | Plug | Receptacle | Plug, Rear Section | Receptacle, Rear Section | Receptacle, Rear Section | Receptacle, Front Section | Receptacle, Rear Section | Receptacle, Front Section | Receptacle, Rear Section | Receptacle, Front Section |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 12 | 6 | 6 | 4 | 9 | 15 | 2 | 15 | 5 | 4 | 4 | 2 | 4 | 6 | 6 | 9 | 9 | 12 |
| Pitch | - | 0.198" (5.03mm) | 0.145" (3.68mm) | 0.198" (5.03mm) | 0.198" (5.03mm) | - | 0.248" (6.30mm) | - | - | - | - | - | - | - | - | - | - | - |
| Number of Rows | 3 | 2 | 2 | 1 | 3 | 3 | 1 | 3 | 1 | 1 | 1 | 1 | 1 | 3 | 3 | 3 | 3 | 3 |
| Row Spacing | 0.250" (6.35mm) | 0.198" (5.03mm) | 0.145" (3.68mm) | - | 0.198" (5.03mm) | 0.250" (6.35mm) | - | 0.250" (6.35mm) | - | - | - | - | - | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Locking Ramp | Locking Ramp | Locking Ramp | Detent Lock | Locking Ramp | Detent Lock | Latch Lock | Latch Lock | Locking Ramp | Latch Lock | Latch Lock | Latch Lock | Locking Ramp | Latch Lock | Locking Ramp | Latch Lock | Locking Ramp |
| Color | White | Natural | Natural | Natural | Natural | White | Natural | White | White | White | White | White | White | White | White | White | White | White |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
