Please send RFQ , we will respond immediately.

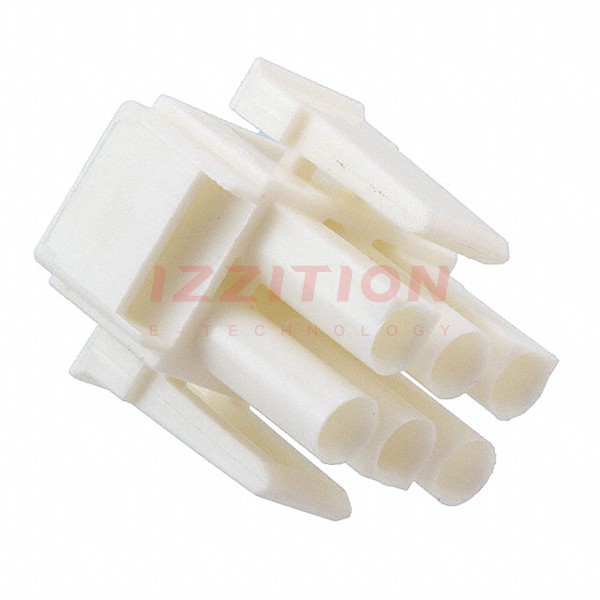

| Part Number | 770037-1 | 770087-1 | 770337-1 | 770038-1 | 770039-1 | 770057-1 | 770097-1 | 770077-1 | 770047-1 | 770017-1 | 770027-1 | 770030-1 | 770031-1 | 770032-1 | 770033-1 | 770034-1 | 770035-1 | 770036-1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug, Front Section | Receptacle | Receptacle | Plug, Rear Section | Plug, Front Section | Receptacle, Front Section | Receptacle | Plug | Receptacle, Front Section | Plug | Receptacle | Receptacle | Plug, Front Section | Plug, Rear Section | Plug, Front Section | Plug, Rear Section | Plug, Front Section | Plug, Rear Section |
| Contact Type | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female | Male or Female |
| Number of Positions | 6 | 6 | 4 | 6 | 9 | 15 | 12 | 4 | 3 | 2 | 6 | 15 | 2 | 2 | 3 | 3 | 4 | 4 |
| Pitch | - | 0.198" (5.03mm) | - | - | - | - | 0.198" (5.03mm) | 0.198" (5.03mm) | - | - | - | - | - | - | - | - | - | - |
| Number of Rows | 3 | 2 | 1 | 3 | 3 | 3 | 3 | 1 | 1 | 1 | 3 | 3 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | 0.250" (6.35mm) | 0.198" (5.03mm) | - | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.198" (5.03mm) | - | - | - | 0.250" (6.35mm) | 0.250" (6.35mm) | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Locking Ramp | Locking Ramp | Latch Lock | Latch Lock | Locking Ramp | - | Detent Lock | Locking Ramp | Latch Lock | Locking Ramp | Locking Ramp | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Color | White | Natural | Natural | White | White | White | Natural | Natural | White | White | White | White | White | White | White | White | White | White |
| Features | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
