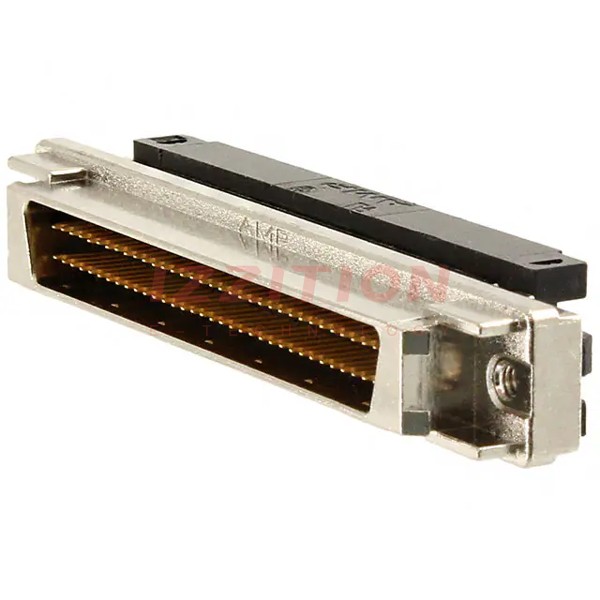

| Part Number | 749878-7 | 749808-7 | 749877-7 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Style | D-Type | D-Sub | D-Type |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 68 | 25 | 68 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Panel Mount |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | 3 (DB, B) | 0.050 Pitch x 0.100 Row to Row |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (2-56); Latchblocks | Housing/Shell (Unthreaded) | Housing/Shell (4-40) |
| Termination | IDC, Ribbon Cable | Crimp | IDC, Ribbon Cable |
| Primary Material | - | - | - |
| Shell Material, Finish | - | Steel, Tin Plated | Steel, Nickel Plated |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | - | Flash | - |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 1A | Varies by Wire Gauge | 1A |
| Backset Spacing | - | - | - |
| Features | Terminating Cover | Grounding Indents | Terminating Cover |
