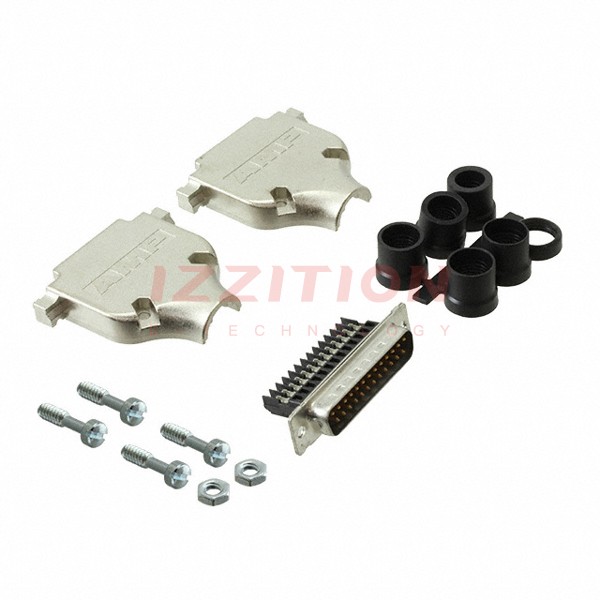

| Part Number | 749810-9 | 749810-7 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 25 | 9 |
| Number of Rows | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 3 (DB, B) | 1 (DE, E) |
| Contact Type | Signal | Signal |
| Flange Feature | Cable Side, Male Short Screw (4-40) | Cable Side, Male Short Screw (4-40) |
| Termination | IDC, Discrete Wire | IDC, Discrete Wire |
| Primary Material | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | Flash | Flash |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Backset Spacing | - | - |
| Features | Grounding Indents, Shielded | Grounding Indents, Shielded |
