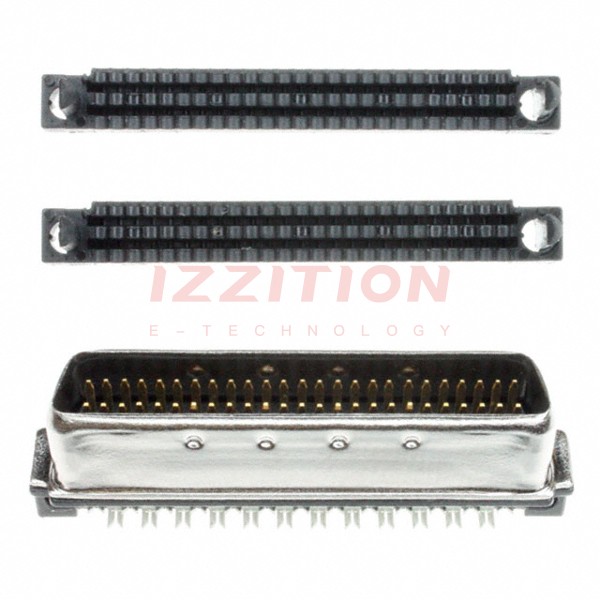

| Part Number | 749621-5 | 749621-7 | 749721-5 | 749621-8 | 749621-9 | 749621-2 | 749621-4 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Obsolete | Active | Obsolete |
| Connector Style | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Receptacle, Female Sockets | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 50 | 68 | 50 | 80 | 100 | 26 | 40 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row |
| Contact Type | Signal | Signal | Signal | Signal | Signal | Signal | Signal |
| Flange Feature | - | - | Housing/Shell (2-56); Latchblocks | - | - | - | - |
| Termination | IDC, Ribbon Cable | IDC, Ribbon Cable | Solder | IDC, Ribbon Cable | IDC, Ribbon Cable | IDC, Ribbon Cable | IDC, Ribbon Cable |
| Primary Material | - | - | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin-Nickel Plated | Steel, Tin-Nickel Plated | Steel, Nickel Plated | Steel, Tin-Nickel Plated | Steel, Tin-Nickel Plated | Steel, Tin-Nickel Plated | Steel, Tin-Nickel Plated |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Backset Spacing | - | - | - | - | - | - | - |
| Features | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded | Shielded |
