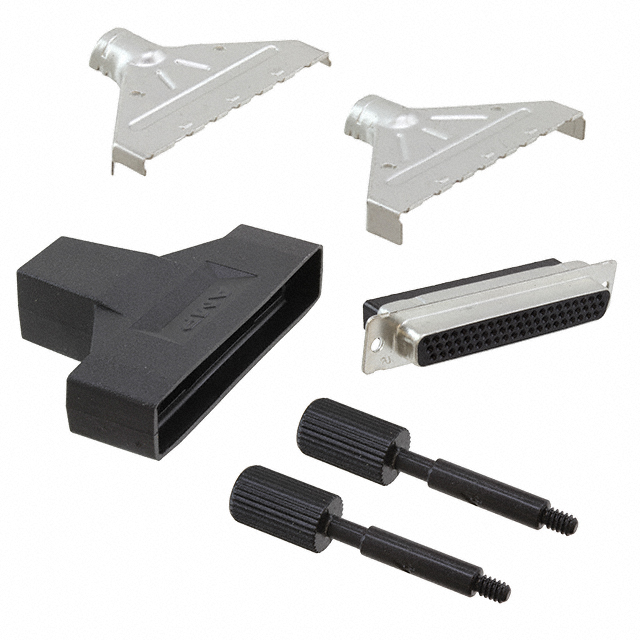

| Part Number | 748642-1 | 5748642-1 | 748640-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete |
| Connector Style | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density |
| Connector Type | Receptacle for Female Contacts | Receptacle for Female Contacts | Receptacle for Female Contacts |
| Number of Positions | 62 | 62 | 26 |
| Number of Rows | 3 | 3 | 3 |
| Shell Size, Connector Layout | 4 (DC, C) High Density | 4 (DC, C) High Density | 2 (DA, A) High Density |
| Contact Type | Signal | Signal | Signal |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Flange Feature | Cable Side (4-40) | Cable Side (4-40) | Cable Side (4-40) |
| Features | Backshell, Shielded | Backshell, Grounding Indents, Shielded | Backshell, Shielded |
| Primary Material | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Shell Finish Thickness | - | 200µin (5.08µm) | - |
| Ingress Protection | - | - | - |
