748635-1
  • Share:

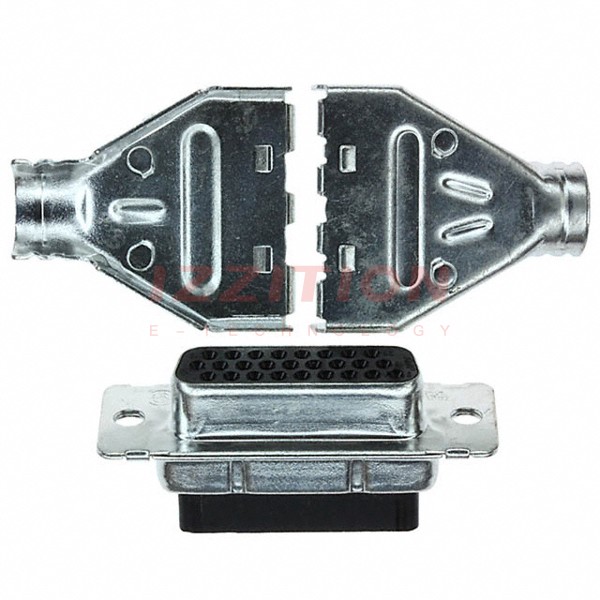

TE Connectivity AMP Connectors 748635-1

Manufacturer No:
748635-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
748635-1 Datasheet
ECAD Model:
-
Description:
CONN D-SUB HD HOUSING RCPT 26POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Sub, High Density
Connector Type:Receptacle for Female Contacts
Number of Positions:26
Number of Rows:3
Shell Size, Connector Layout:2 (DA, A) High Density
Contact Type:Signal
Mounting Type:Free Hanging (In-Line)
Flange Feature:Housing/Shell (Unthreaded)
Features:Shielded
Primary Material:-
Shell Material, Finish:Steel, Tin Plated
Shell Finish Thickness:-
Ingress Protection:-
0 Remaining View Similar

In Stock

-
329

Please send RFQ , we will respond immediately.

Similar Products

Part Number 748635-1 748639-1   748636-1   748634-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Obsolete Obsolete Obsolete
Connector Style D-Sub, High Density D-Sub, High Density D-Sub, High Density D-Sub, High Density
Connector Type Receptacle for Female Contacts Receptacle for Female Contacts Receptacle for Female Contacts Receptacle for Female Contacts
Number of Positions 26 15 44 15
Number of Rows 3 3 3 3
Shell Size, Connector Layout 2 (DA, A) High Density 1 (DE, E) High Density 3 (DB, B) High Density 1 (DE, E) High Density
Contact Type Signal Signal Signal Signal
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Flange Feature Housing/Shell (Unthreaded) Cable Side (4-40) Housing/Shell (Unthreaded) Housing/Shell (Unthreaded)
Features Shielded Backshell, Shielded Shielded Shielded
Primary Material - - - -
Shell Material, Finish Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated
Shell Finish Thickness - - - -
Ingress Protection - - - -
