Please send RFQ , we will respond immediately.

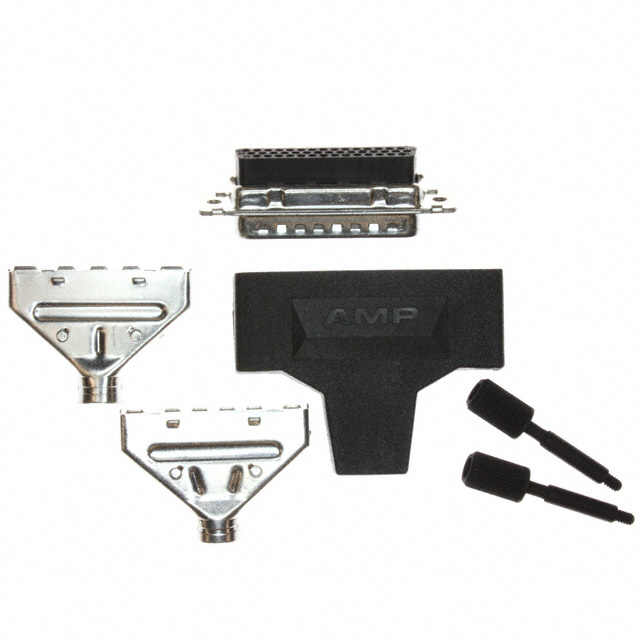

| Part Number | 748475-1 | 748477-1 | 748476-1 | 748470-1 | 748471-1 | 748473-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density | D-Sub, High Density |
| Connector Type | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts | Plug for Male Contacts |
| Number of Positions | 44 | 78 | 62 | 44 | 62 | 15 |
| Number of Rows | 3 | 4 | 3 | 3 | 3 | 3 |
| Shell Size, Connector Layout | 3 (DB, B) High Density | 5 (DD, D) High Density | 4 (DC, C) High Density | 3 (DB, B) High Density | 4 (DC, C) High Density | 1 (DE, E) High Density |
| Contact Type | Signal | Signal | Signal | Signal | Signal | Signal |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Flange Feature | Cable Side (4-40) | Cable Side (4-40) | Cable Side (4-40) | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) | Cable Side (4-40) |
| Features | Backshell, Grounding Indents, Shielded | Backshell, Grounding Indents, Shielded | Backshell, Grounding Indents, Shielded | Grounding Indents, Shielded | Grounding Indents, Shielded | Backshell, Grounding Indents, Shielded |
| Primary Material | - | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Shell Finish Thickness | - | - | - | - | 200µin (5.08µm) | - |
| Ingress Protection | - | - | - | - | - | - |
