747959-1
  • Share:

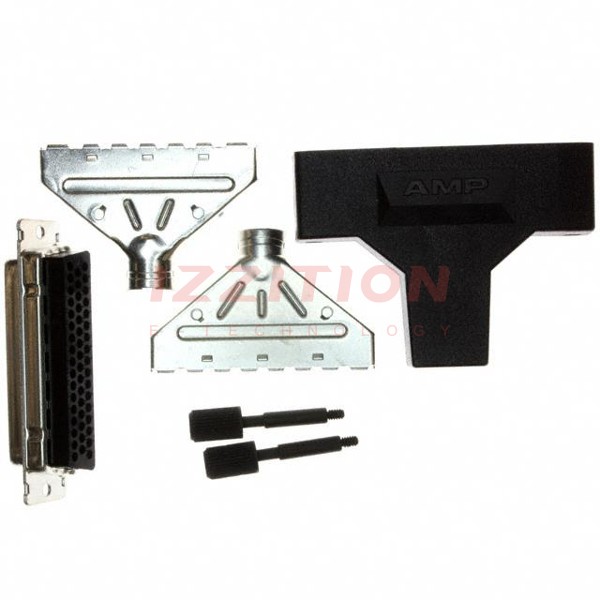

TE Connectivity AMP Connectors 747959-1

Manufacturer No:
747959-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
747959-1 Datasheet
ECAD Model:
-
Description:
CONN D-SUB HOUSING RCPT 50POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Sub
Connector Type:Receptacle for Female Contacts
Number of Positions:50
Number of Rows:3
Shell Size, Connector Layout:5 (DD, D)
Contact Type:Signal
Mounting Type:Free Hanging (In-Line)
Flange Feature:Cable Side (4-40)
Features:Backshell, Shielded
Primary Material:-
Shell Material, Finish:Steel, Tin Plated
Shell Finish Thickness:-
Ingress Protection:-
0 Remaining View Similar

In Stock

-
245

Please send RFQ , we will respond immediately.

Similar Products

Part Number 747959-1 5747959-1   747951-1   747952-1   747953-1   747954-1   747955-1   747956-1   747957-1   747958-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Active Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Style D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub D-Sub
Connector Type Receptacle for Female Contacts Receptacle for Female Contacts Receptacle for Female Contacts Plug for Male Contacts Receptacle for Female Contacts Plug for Male Contacts Receptacle for Female Contacts Plug for Male Contacts Receptacle for Female Contacts Plug for Male Contacts
Number of Positions 50 50 9 9 15 15 25 25 37 37
Number of Rows 3 3 2 2 2 2 2 2 2 2
Shell Size, Connector Layout 5 (DD, D) 5 (DD, D) 1 (DE, E) 1 (DE, E) 2 (DA, A) 2 (DA, A) 3 (DB, B) 3 (DB, B) 4 (DC, C) 4 (DC, C)
Contact Type Signal Signal Signal Signal Signal Signal Signal Signal Signal Signal
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Flange Feature Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40) Cable Side (4-40)
Features Backshell, Shielded Backshell, Shielded Backshell, Shielded Backshell, Grounding Indents, Shielded Backshell, Shielded Backshell, Grounding Indents, Shielded Backshell, Shielded Backshell, Grounding Indents, Shielded Backshell, Shielded Backshell, Grounding Indents, Shielded
Primary Material - - - - - - - - - -
Shell Material, Finish Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated Steel, Tin Plated
Shell Finish Thickness - 200µin (5.08µm) - - - - - - - -
Ingress Protection - - - - - - - - - -
