Please send RFQ , we will respond immediately.

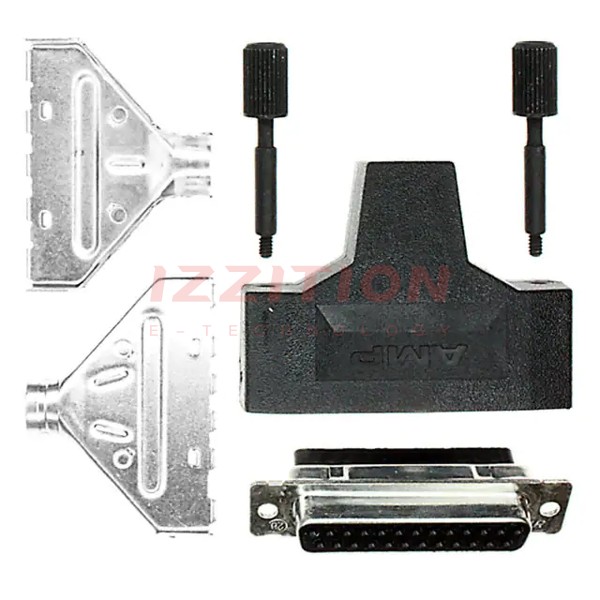

| Part Number | 747955-1 | 747956-1 | 747959-1 | 747957-1 | 747958-1 | 747555-1 | 747951-1 | 747952-1 | 747953-1 | 747954-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle for Female Contacts | Plug for Male Contacts | Receptacle for Female Contacts | Receptacle for Female Contacts | Plug for Male Contacts | Receptacle for Female Contacts | Receptacle for Female Contacts | Plug for Male Contacts | Receptacle for Female Contacts | Plug for Male Contacts |
| Number of Positions | 25 | 25 | 50 | 37 | 37 | 25 | 9 | 9 | 15 | 15 |
| Number of Rows | 2 | 2 | 3 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Shell Size, Connector Layout | 3 (DB, B) | 3 (DB, B) | 5 (DD, D) | 4 (DC, C) | 4 (DC, C) | 3 (DB, B) | 1 (DE, E) | 1 (DE, E) | 2 (DA, A) | 2 (DA, A) |
| Contact Type | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal | Signal |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Flange Feature | Cable Side (4-40) | Cable Side (4-40) | Cable Side (4-40) | Cable Side (4-40) | Cable Side (4-40) | Housing/Shell (Unthreaded) | Cable Side (4-40) | Cable Side (4-40) | Cable Side (4-40) | Cable Side (4-40) |
| Features | Backshell, Shielded | Backshell, Grounding Indents, Shielded | Backshell, Shielded | Backshell, Shielded | Backshell, Grounding Indents, Shielded | Shielded | Backshell, Shielded | Backshell, Grounding Indents, Shielded | Backshell, Shielded | Backshell, Grounding Indents, Shielded |
| Primary Material | - | - | - | - | - | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Shell Finish Thickness | - | - | - | - | - | - | - | - | - | - |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - |
