747829-4
  • Share:

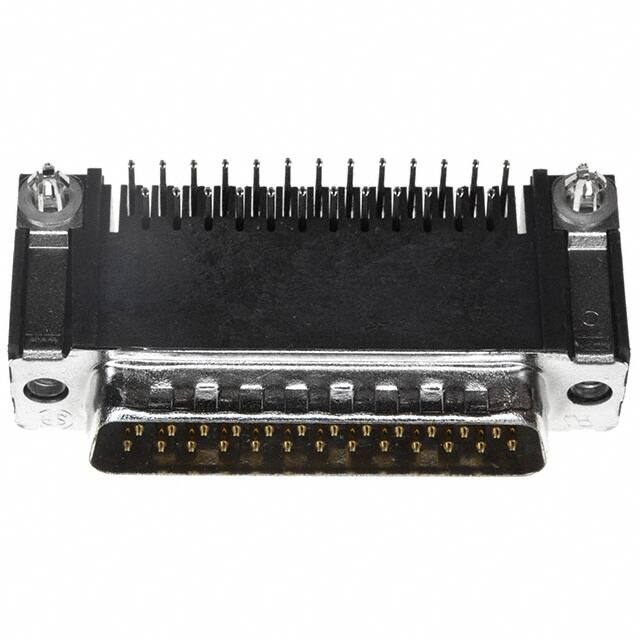

TE Connectivity AMP Connectors 747829-4

Manufacturer No:
747829-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
747829-4 Datasheet
ECAD Model:
-
Description:
CONN D-SUB PLUG 25POS R/A SLDR
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Sub
Connector Type:Plug, Male Pins
Number of Positions:25
Number of Rows:2
Mounting Type:Through Hole, Right Angle
Shell Size, Connector Layout:3 (DB, B)
Contact Type:Signal
Flange Feature:Housing/Shell (4-40)
Termination:Solder
Primary Material:-
Shell Material, Finish:Steel, Tin Plated
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):6A
Backset Spacing:0.590" (14.99mm)
Features:Board Lock, Ground Strap, Grounding Indents
0 Remaining View Similar

In Stock

-
479

Please send RFQ , we will respond immediately.
