Please send RFQ , we will respond immediately.

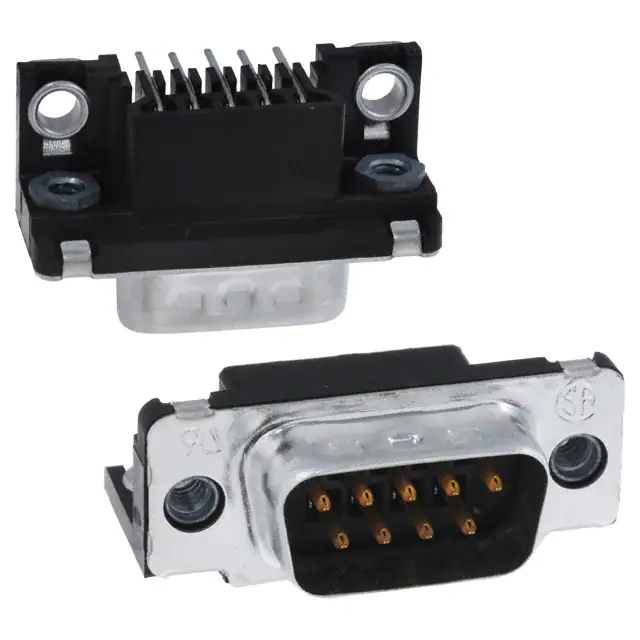

| Part Number | 747250-3 | 747250-6 | 747250-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 9 | 9 | 9 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Shell Size, Connector Layout | 1 (DE, E) | 1 (DE, E) | 1 (DE, E) |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (4-40) |
| Termination | Solder | Solder | Solder |
| Primary Material | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | Flash | - | - |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 6A | 6A | 6A |
| Backset Spacing | 0.318" (8.08mm) | 0.318" (8.08mm) | 0.318" (8.08mm) |
| Features | Ground Strap, Grounding Indents | Ground Strap, Grounding Indents | Ground Strap, Grounding Indents |
