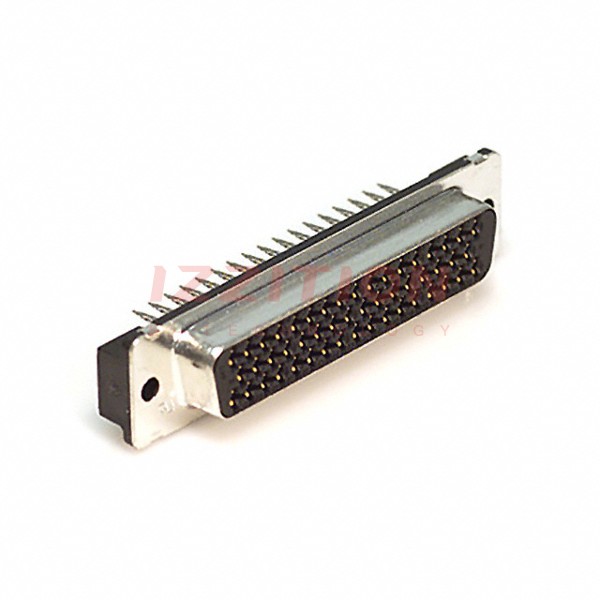

| Part Number | 747143-2 | 747193-2 | 747043-2 | 747141-2 | 747142-2 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Active | Active |
| Connector Style | D-Sub | D-Sub | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 50 | 50 | 25 | 15 | 15 |
| Number of Rows | 3 | 3 | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole, Right Angle | Free Hanging (In-Line) | Through Hole | Through Hole |
| Shell Size, Connector Layout | 5 (DD, D) | 5 (DD, D) | 3 (DB, B) | 2 (DA, A) | 2 (DA, A) |
| Contact Type | Signal | Signal | Signal | Signal | Signal |
| Flange Feature | Housing/Shell (Unthreaded) | Mating Side, Female Screwlock (4-40) | Housing/Shell (4-40) | Housing/Shell (4-40) | Mating Side, Female Screwlock (4-40) |
| Termination | Press-Fit | Solder | IDC, Ribbon Cable | Press-Fit | Press-Fit |
| Primary Material | - | - | - | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | - | Flash | 30.0µin (0.76µm) | - | - |
| Ingress Protection | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | - | 6A | 1.25A | - | - |
| Backset Spacing | - | 0.545" (13.84mm) | - | - | - |
| Features | - | Mounting Brackets | Feed Through, Grounding Indents | - | - |
