747051-1
  • Share:

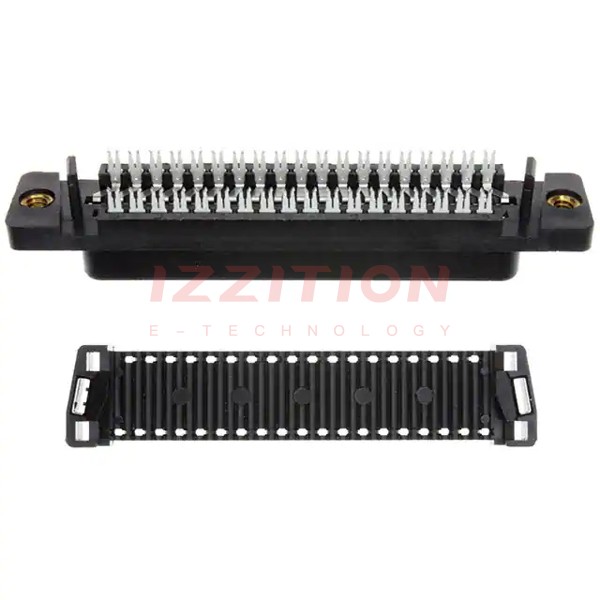

TE Connectivity AMP Connectors 747051-1

Manufacturer No:
747051-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
747051-1 Datasheet
ECAD Model:
-
Description:
CONN D-SUB RCPT 37POS IDC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Style:D-Sub
Connector Type:Receptacle, Female Sockets
Number of Positions:37
Number of Rows:2
Mounting Type:Free Hanging (In-Line)
Shell Size, Connector Layout:4 (DC, C)
Contact Type:Signal
Flange Feature:Housing/Shell (4-40)
Termination:IDC, Ribbon Cable
Primary Material:-
Shell Material, Finish:-
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):1.25A
Backset Spacing:-
Features:Feed Through
0 Remaining View Similar

In Stock

-
153

Please send RFQ , we will respond immediately.

Similar Products

Part Number 747051-1 747051-4   747052-1   747051-3   747051-2
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Obsolete Obsolete Obsolete Obsolete Obsolete
Connector Style D-Sub D-Sub D-Sub D-Sub D-Sub
Connector Type Receptacle, Female Sockets Receptacle, Female Sockets Receptacle, Female Sockets Receptacle, Female Sockets Receptacle, Female Sockets
Number of Positions 37 9 37 15 25
Number of Rows 2 2 2 2 2
Mounting Type Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line) Free Hanging (In-Line)
Shell Size, Connector Layout 4 (DC, C) 1 (DE, E) 4 (DC, C) 2 (DA, A) 3 (DB, B)
Contact Type Signal Signal Signal Signal Signal
Flange Feature Housing/Shell (4-40) Housing/Shell (4-40) Housing/Shell (4-40) Housing/Shell (4-40) Housing/Shell (4-40)
Termination IDC, Ribbon Cable IDC, Ribbon Cable IDC, Ribbon Cable IDC, Ribbon Cable IDC, Ribbon Cable
Primary Material - - - - -
Shell Material, Finish - - Steel, Tin Plated - -
Contact Finish Gold Gold Gold Gold Gold
Contact Finish Thickness 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Ingress Protection - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Current Rating (Amps) 1.25A 1.25A 1.25A 1.25A 1.25A
Backset Spacing - - - - -
Features Feed Through Feed Through Feed Through Feed Through Feed Through
