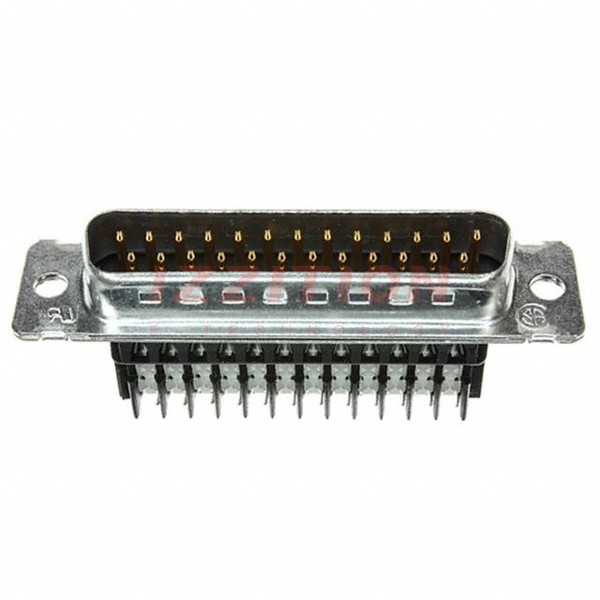

| Part Number | 745496-1 | 745496-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 25 | 25 |
| Number of Rows | 2 | 2 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 3 (DB, B) | 3 (DB, B) |
| Contact Type | Signal | Signal |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Termination | IDC, Discrete Wire | IDC, Discrete Wire |
| Primary Material | - | - |
| Shell Material, Finish | Steel, Tin Plated | Steel, Tin Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Backset Spacing | - | - |
| Features | Grounding Indents | Grounding Indents |
