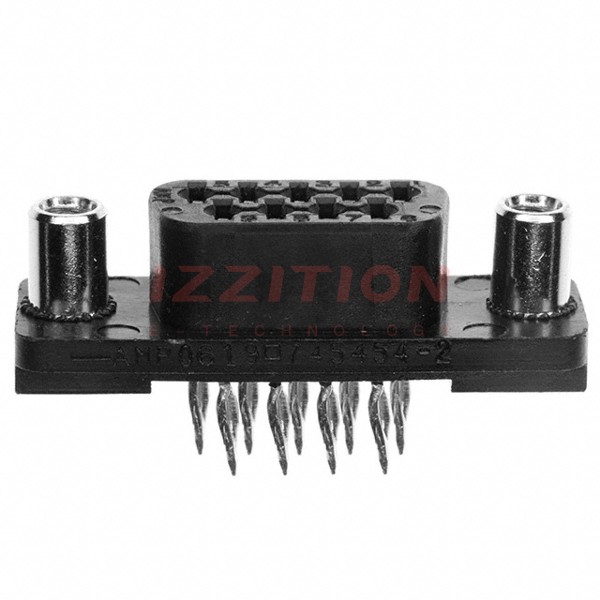

| Part Number | 745454-2 | 745458-2 | 745494-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete |
| Connector Style | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Plug, Male Pins |
| Number of Positions | 9 | 25 | 15 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Free Hanging (In-Line) |
| Shell Size, Connector Layout | 1 (DE, E) | 3 (DB, B) | 2 (DA, A) |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) |
| Termination | Press-Fit | Press-Fit | IDC, Discrete Wire |
| Primary Material | - | - | - |
| Shell Material, Finish | - | - | Steel, Tin Plated |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | - | - | Flash |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | - | - | Varies by Wire Gauge |
| Backset Spacing | - | - | - |
| Features | - | - | Grounding Indents |
