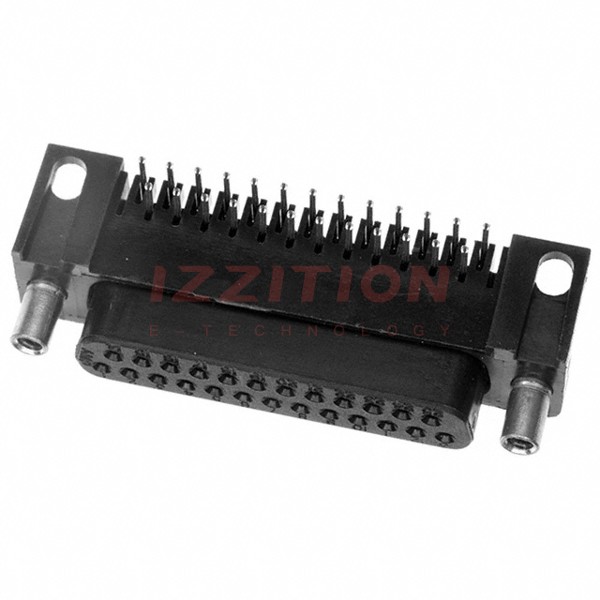

| Part Number | 745397-2 | 745497-2 | 745395-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Active |
| Connector Style | D-Sub | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 25 | 37 | 9 |
| Number of Rows | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Free Hanging (In-Line) | Through Hole, Right Angle |
| Shell Size, Connector Layout | 3 (DB, B) | 4 (DC, C) | 1 (DE, E) |
| Contact Type | Signal | Signal | Signal |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Housing/Shell (Unthreaded) | Mating Side, Female Screwlock (4-40) |
| Termination | Solder | IDC, Discrete Wire | Solder |
| Primary Material | - | - | - |
| Shell Material, Finish | - | Steel, Tin Plated | - |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 6A | Varies by Wire Gauge | 6A |
| Backset Spacing | 0.318" (8.08mm) | - | 0.318" (8.08mm) |
| Features | - | - | - |
