Please send RFQ , we will respond immediately.

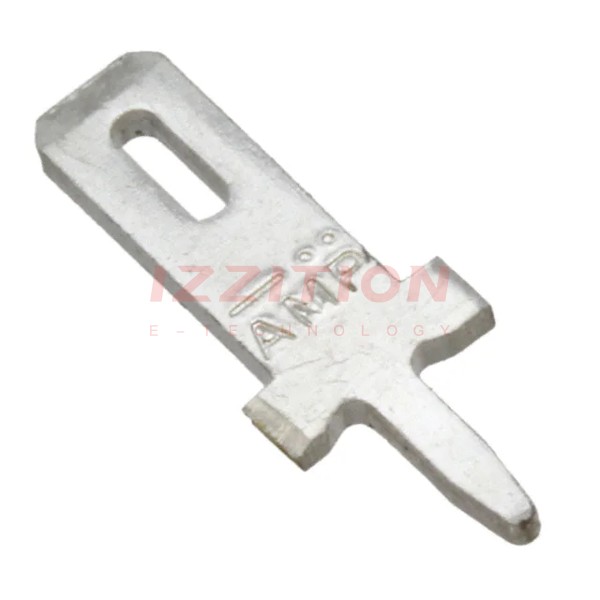

| Part Number | 735292-2 | 735212-2 | 735222-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard |
| Gender | Male | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | - | 0.303" (7.70mm) | 0.303" (7.70mm) |
| Length - Overall | 0.488" (12.40mm) | 0.669" (16.99mm) | 0.673" (17.10mm) |
| Termination | Solder | Crimp | Crimp |
| Wire Gauge | - | 17-22 AWG | 13-17 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - |
| Color | - | - | - |
| Contact Material | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin |
