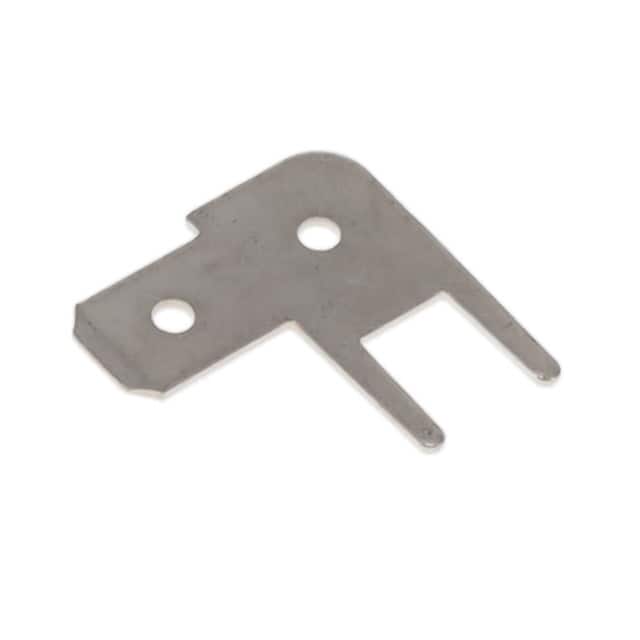

| Part Number | 726389-2 | 726386-2 | 726387-2 | 726388-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Male | Male | Male | Male |
| Tab Width | 0.187" (4.75mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.020" (0.51mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) |
| Tab Length | 0.252" (6.40mm) | 0.315" (8.00mm) | - | 0.252" (6.40mm) |
| Length - Overall | - | 0.551" (14.00mm) | - | 0.543" (13.80mm) |
| Termination | Solder | Solder | Solder | Solder |
| Wire Gauge | - | - | - | - |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Brass | Brass | Brass | Brass |
| Contact Finish | Tin | Tin | Tin | Tin |
