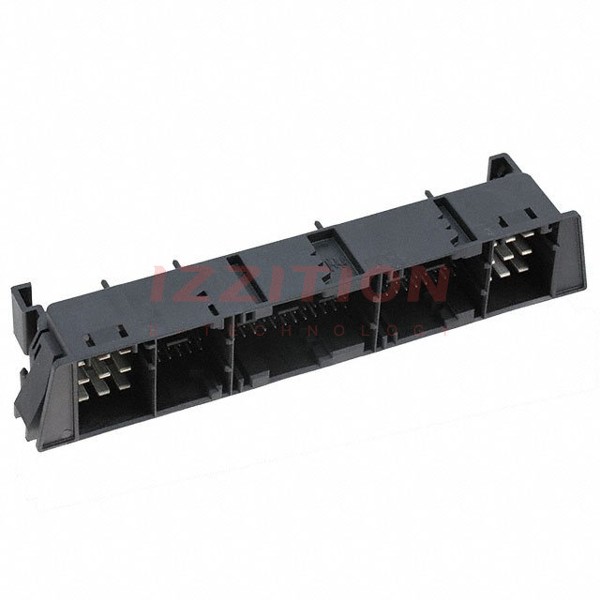

TE Connectivity AMP Connectors 7-967288-1

Manufacturer No:
7-967288-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
7-967288-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 134POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:134 (9 + 24 + 52 + 40 + 9)
Number of Rows:-
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:1.138" (28.90mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide, Board Lock
Operating Temperature:-40°C ~ 130°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$15.64
22

Please send RFQ , we will respond immediately.
